SELECT A DIAGRAM

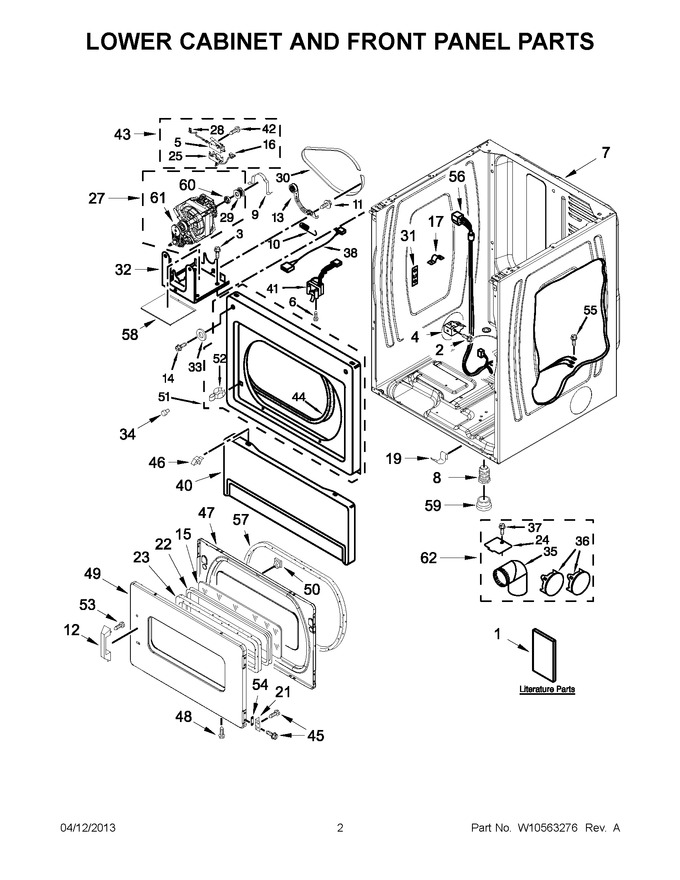

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169673		Wiring Diagram		Appelez-nous	-
1	W10184580		Installation Instructions		Appelez-nous	-
1	W10135168		Tech Sheet		Appelez-nous	-
2	681615		Screw   (Replaces: 3391915)				$ 12.49
3	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.07
4	3391846		Clip, Front Panel				$ 19.04
5	WP8564010		Assembly, Switch & Actuator   (Replaces: 8564010)				$ 89.24
6	WP3395530		Screw   (Replaces: 697773)				$ 6.93
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 377.29
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 22.11
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.22
12	WPW10213202		Handle, Door   (Replaces: W10213202)			Immediately	$ 74.08
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 81.06
14	WP3400077		Screw   (Replaces: 3400077)				$ 6.25
15	3392918		Window		Appelez-nous	-
16	8539892		Wire-motor To-belt-switch		Appelez-nous	-
17	WP98997		Clip   (Replaces: 98997)				$ 9.98
19	WPW10291934		Clip   (Replaces: W10291934)				$ 6.98
21	WPW10279703		Assembly, Hinge & Pin   (Replaces: W10279703)				$ 65.00
22	3392914		Frame, Window		Appelez-nous	-
23	3392915		Gasket, Window				$ 58.46
24	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.06
25	8564011		Bracket, Switch				$ 16.35
27	W11234001		Assembly, Motor 60 Hz.   (Replaces: W10396034)			Immediately	$ 371.89
28	W10167613		Wire, Belt Switch		Appelez-nous	-
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 45.92
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 39.60
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.00
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 113.26
33	W11089212		Washer   (Replaces: 3392186)				$ 8.70
34	693152		Bumper				$ 9.86
35	WPW10416072		Elbow   (Replaces: 49026)				$ 24.14
36	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 68.99
37	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.01
38	8283298		Jumper, Door Switch				$ 75.36
40	WP3406797		Toe Panel (white)   (Replaces: 697215)				$ 214.50
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 50.08
42	777849		Screw   (Replaces: W10002600)				$ 6.31
43	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 23.76
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw   (Replaces: 342055)				$ 6.81
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	W10244331		Inner Door (white)   (Replaces: W10323063)		Appelez-nous	-
49	W10322548		Outer Door (white)		Appelez-nous	-
50	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
51	W10242810		Front Panel (white)   (Replaces: W10192882)				$ 324.96
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
53	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 6.47
54	W10191265		Plug, Hinge (white)				$ 39.85
55	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
56	W11311710		Harness (lower)   (Replaces: W10169678)				$ 251.81
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
58	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 19.96
59	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.04
60	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
61	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 31.71
62	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 68.99

    View Diagram in Separate Window       Print Part List
