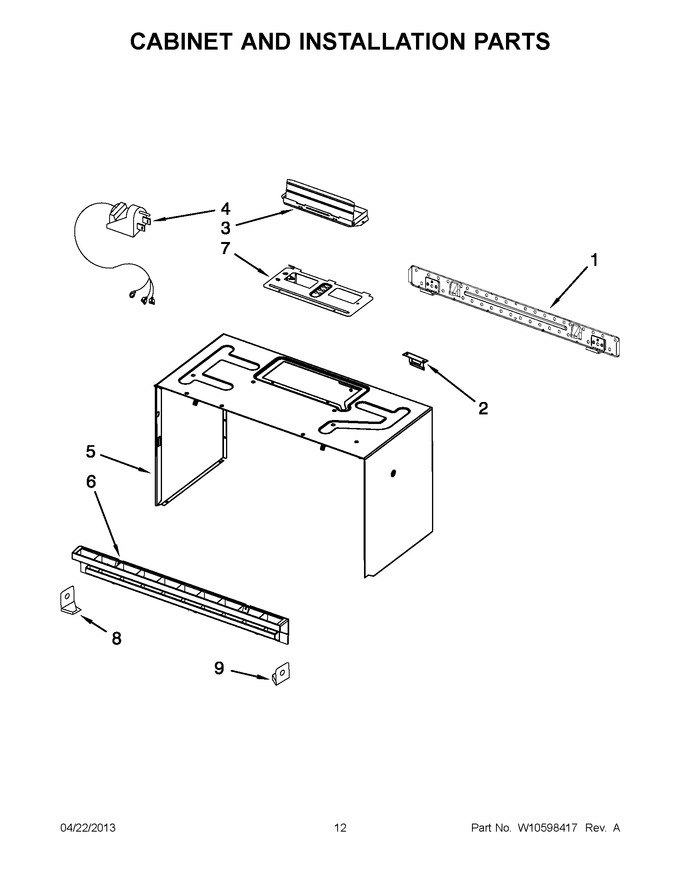

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting Microwave (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 18.48 | |||||
| 5 | WPW10462003 | Case, Outer (white) (Replaces: W10462003) |
|
$ 250.22 | |||||
| 5 | WPW10462001 | Case, Outer (black/universal Silver/stainless Models) (Replaces: W10462001) |
|
$ 255.01 | |||||
| 5 | W10461999 | Case, Outer (bisque/biscuit) |
|
- | |||||
| 6 | W10269471 | Grille, Vent (white) |
|
Immediately | $ 98.77 | ||||
| 6 | W10259625 | Grille, Vent (black/universal Silver/stainless Models) |
|
Immediately | $ 67.30 | ||||
| 6 | W10139642 | Grille, Vent (bisque/biscuit) |
|
- | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W11026306 | Holder, Vent Left Side (white) (Replaces: W10393278) |
|
Immediately | $ 6.47 | ||||
| 8 | W10830163 | Holder, Vent Left Side (black) (Replaces: W10406308) |
|
$ 12.18 | |||||
| 9 | W10703282 | Holder, Vent Right Side (white) (Replaces: W10393276) |
|
$ 9.44 | |||||
| 9 | W10810989 | Holder, Vent Right Side (black) (Replaces: W10406307) |
|
$ 8.76 | |||||
| NI | W10821385 | Miscellaneous, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | W10247296 | Miscellaneous, Installation Instructions |
|
- | |||||
| NI | W10138802 | Miscellaneous, Screw |
|
$ 9.80 | |||||
| NI | W10540464 | Miscellaneous, Harness, Main |
|
- | |||||
| NI | W10539840 | Miscellaneous, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W10540465 | Miscellaneous, Hdlamp/tt Wire Assembly |
|
- | |||||
| NI | W10539842 | Miscellaneous, Harness, Magnetron To High Voltage Transformer |
|
$ 14.31 | |||||
| NI | W10470168 | Miscellaneous, Harness, Ntc Sensor Flat Wire |
|
$ 36.63 | |||||
| NI | W10539846 | Miscellaneous, Harness, Message Wire |
|
- | |||||
| NI | W10563144 | Miscellaneous, Ground Wire Assembly |
|
- |
