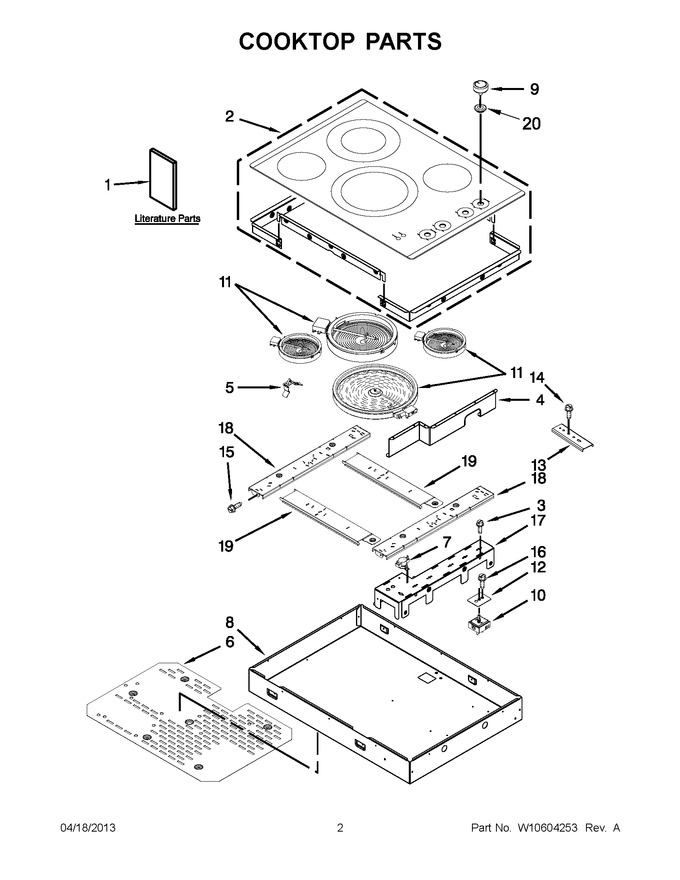

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10574205 | Installation Instructions |
|
- | |||||
| 1 | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1 | W10550659 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10488782 | Diagram, Wiring |
|
- | |||||
| 2 | W10570702 | Cooktop (black) |
|
$ 467.15 | |||||
| 2 | W10570703 | Cooktop (stainless) |
|
$ 323.83 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 13.07 | ||||
| 4 | W10311796 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W10422067 | Bottom, Heat Shield |
|
- | |||||
| 7 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 167.81 | ||||
| 8 | W10410497 | Box-burner |
|
- | |||||
| 9 | W10480479 | Knob, Control (stainless) |
|
- | |||||
| 9 | W10480478 | Knob, Control (black) |
|
$ 81.75 | |||||
| 10 | WPW10326246 | Switch, Infinite (left Front) (Replaces: W10326246) |
|
$ 131.16 | |||||
| 10 | WPW10434447 | Switch, Infinite (right Front) (Replaces: W10434447) |
|
$ 121.22 | |||||
| 10 | WP74007840 | Switch, Infinite (right Rear) (Replaces: 7403P755-60) |
|
Immediately | $ 163.25 | ||||
| 10 | W10431995 | Switch, Infinite (left Rear) |
|
$ 136.64 | |||||
| 11 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 11 | WPW10189281 | Element (3000w) (right Front) (Replaces: W10189281) |
|
Immediately | $ 323.60 | ||||
| 11 | W11517959 | Element (1400w) (left Rear) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 17 | W10484349 | Plate, Switch |
|
- | |||||
| 18 | W10457917 | Rail, Vertical |
|
- | |||||
| 19 | W10311790 | Rail, Horizontal |
|
- | |||||
| 20 | WPW10293874 | Grommet, Switch (Replaces: W10293874) |
|
Immediately | $ 7.25 |
