| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10356098 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10343072 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10562797 |
|
Wiring Diagram |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10389459 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3390688 |
|
Spacer, Foam Pad |
|
|
|
$ 8.13 |
|
|
| 3 |
W10732070 |
|
Bracket, Control (Replaces: 8528583) |
|
|
|
$ 158.08 |
|
|
| 4 |
W10124193 |
|
Timer, Washer |
|
|
|
$ 188.62 |
|
|
| 5 |
W10851055 |
 |
Switch, Rotary (Replaces: 3949188) |
|
|
|
$ 147.65 |
|
|
| 6 |
W10112571 |
 |
Dial, Timer |
|
|
|
$ 43.66 |
|
|
| 7 |
WPW10110033 |
 |
Knob, Timer (washer) (white) (Replaces: W10110033) |
|
|
|
$ 57.49 |
|
|
| 8 |
WPW10110035 |
 |
Assembly, Control Knob (white) (Replaces: W10110035) |
|
|
|
$ 52.27 |
|
|
| 9 |
8521965 |
|
Gasket, Console |
|
Appelez-nous
|
- |
|
|
|
| 10 |
3389464 |
|
End Cap (left) (white) |
|
|
|
$ 26.75 |
|
|
| 11 |
WPW10110036 |
 |
Knob, Timer (dryer) (white) (Replaces: W10110036) |
|
|
|
$ 56.11 |
|
|
| 12 |
W10915367 |
|
Screw (Replaces: 3400808) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WPW10544357 |
|
Switch, Pressure (3 Level) (Replaces: W10544357) |
|
|
|
$ 182.98 |
|
|
| 14 |
W11103599 |
 |
Switch, Temperature (Replaces: W10114118) |
|
|
Immediately |
$ 181.62 |
|
|
| 15 |
WP90767 |
 |
Screw (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 16 |
WPW10117655 |
 |
Switch, Push To Start (Replaces: W10117655) |
|
|
Immediately |
$ 77.04 |
|
|
| 17 |
W10210799 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP694419 |
 |
Buzzer, Mini (Replaces: 694419) |
|
|
|
$ 114.90 |
|
|
| 19 |
WPW10113816 |
 |
Timer, Dryer (Replaces: W10113816) |
|
|
|
$ 335.65 |
|
|
| 20 |
W10339548 |
|
Panel, Control |
|
|
|
$ 128.95 |
|
|
| 21 |
3389453 |
|
Bracket, Hinge |
|
|
|
$ 78.06 |
|
|
| 22 |
3389456 |
|
End Cap (right) (white) |
|
|
|
$ 40.11 |
|
|
| 23 |
W10470714 |
|
Harness, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 24 |
7111P002-60 |
|
Clamp, Harness (Replaces: 3390604) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W10134185 |
|
Clip, Harness (Replaces: 3390422) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
WP8536939 |
 |
Clip, Spring (Replaces: 8536939) |
|
|
Immediately |
$ 7.03 |
|
|
| 27 |
WPW10334336 |
|
Tie Cable (Replaces: W10334336) |
|
|
|
$ 5.75 |
|
|

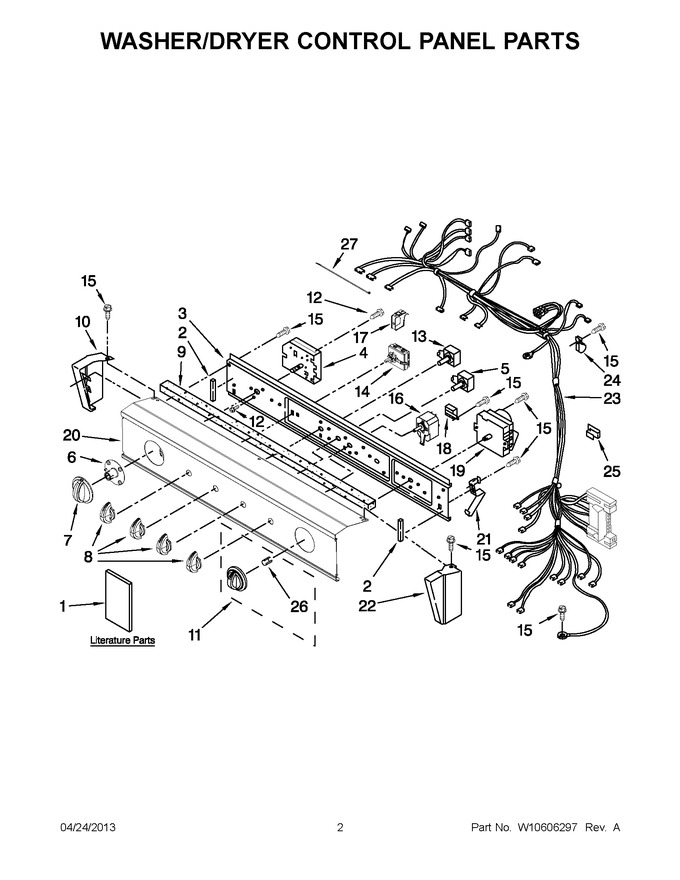

View Diagram in Separate Window
Print Part List
