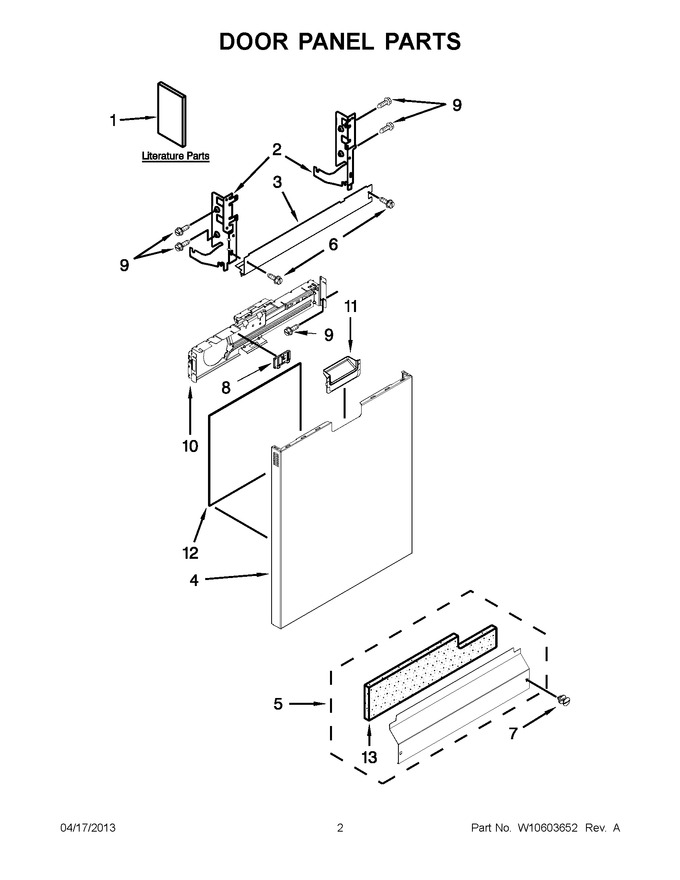

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10401504		Instructions, Installation		Appelez-nous	-
1	W10508960		Energy Guide		Appelez-nous	-
1	W10532755		Use & Care Guide, English/french		Appelez-nous	-
1	W10580766		Tech Sheet, English		Appelez-nous	-
1	W10580767		Tech Sheet, French		Appelez-nous	-
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	WPW10508945		Panel Front (includes 8 & 11) (stainless)   (Replaces: W10508945)				$ 295.68
5	W10827608		Access Panel (black)   (Replaces: W10369038)				$ 180.76
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 32.59
8	W10463662		Spacer, Control Bracket Panel				$ 49.41
9	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 8.26
10	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
11	W10343324		Pocket, Handle (black)				$ 78.37
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
13	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
