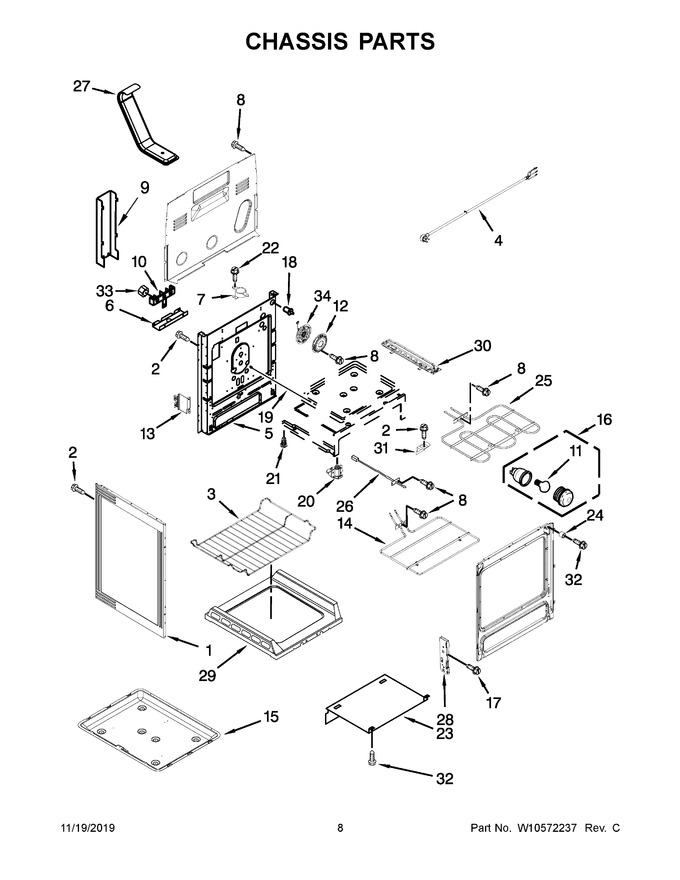

05 - Chassis Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10575396		Panel, Side (white)   (Replaces: W10575396)				$ 133.84
2	3196172		Screw			Immediately	$ 11.55
3	W11256463		Rack, Oven (gull-wing)   (Replaces: W10289145)			Immediately	$ 119.25
4	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 65.69
5	N/P		Back, Main (not Serviced)		Appelez-nous	-
6	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
7	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
9	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 119.66
10	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 27.12
11	8009		Bulb, Light   (Replaces: 7407P103-60)			Immediately	$ 16.80
12	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 66.57
13	W10273002		Bracket, Oven Support				$ 65.43
14	W10779716		Element, Bake   (Replaces: W10774342)			Immediately	$ 55.31
15	W11379357		Pan, Bake   (Replaces: W10346147)			Immediately	$ 71.02
16	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 78.31
17	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
18	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 130.00
19	W11370463		Rod, Door Switch   (Replaces: W10273192)			Immediately	$ 57.32
20	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 29.33
21	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
22	3196172		Screw			Immediately	$ 11.55
23	W10726740		Shield, Heat				$ 124.31
24	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 48.05
25	W11321472		Element, Broil   (Replaces: W11095929)			Immediately	$ 101.29
26	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 126.64
27	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 225.43
28	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
29	W10789865		Bottom, Oven   (Replaces: W10289079)				$ 199.10
30	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 53.71
31	W10035900		Support, Oven Bottom				$ 12.31
32	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
33	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
34	W11043837		Motor, Fan (convection)   (Replaces: W10874067)			Immediately	$ 267.54
1A	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 148.35
30A	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 53.71
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10225523		Insulation, Bottom   (Replaces: W10225523)				$ 103.07
NI	WPW10194393		Insulation, Wrap   (Replaces: W10194393)				$ 110.70
NI	WPW10225524		Insulation, Back   (Replaces: W10225524)				$ 98.30
NI	4820F015-59		Insulation, Strap				$ 8.39
