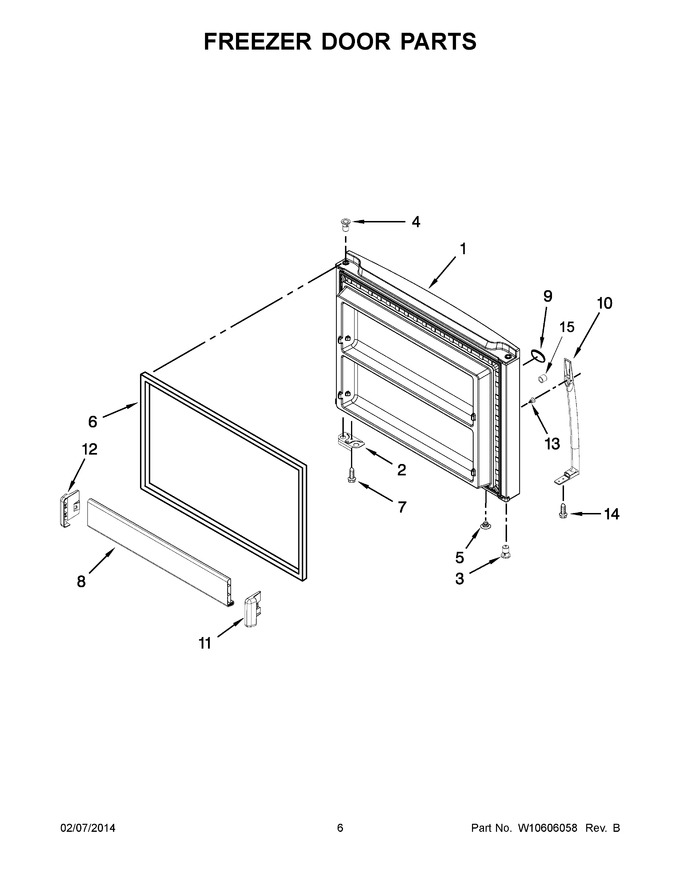

04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10406263 | Door, Freezer (includes Items 4 And 6) (sparkle Steel) |
|
- | |||||
| 1 | W10406259 | Door, Freezer (includes Items 4 And 6) (white) |
|
- | |||||
| 1 | W10406261 | Door, Freezer (includes Items 4 And 6) (black) |
|
- | |||||
| 1 | W10576474 | Door, Freezer (includes Items 4 And 6) (stainless) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 4 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 6.98 | |||||
| 5 | WP2254517 | Plug, Hinge Sleeve Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 5 | WP2212651 | Plug, Hinge Sleeve Hole (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 5 | WP2212648 | Plug, Hinge Sleeve Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.02 | ||||
| 6 | 2159060 | Gasket, Door (beige) (Replaces: 2214967) |
|
$ 288.01 | |||||
| 6 | W10249196 | Gasket, Door (grey) (Replaces: W10171479) |
|
Immediately | $ 239.23 | ||||
| 6 | 2177310 | Gasket, Door (black) (Replaces: 2214969) |
|
$ 287.41 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 8 | WPW10469912 | Trim, Door Shelf (Replaces: W10469912) |
|
$ 146.10 | |||||
| 9 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 10 | WPW10498429 | Handle (white) (Replaces: W10498429) |
|
$ 150.08 | |||||
| 10 | W11765172 | Handle (titanium Sparkle) (Replaces: W10646617) |
|
Immediately | $ 107.29 | ||||
| 10 | WPW10498430 | Handle (black) (Replaces: W10498430) |
|
$ 103.96 | |||||
| 11 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 12 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 13 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 7.66 | ||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 13.81 |
