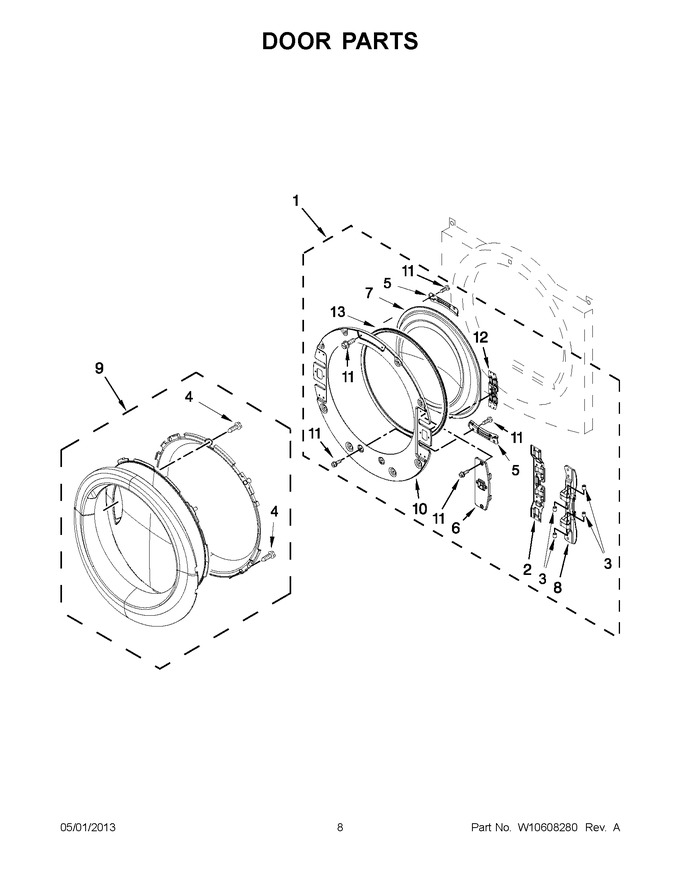

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10424963 | Door, Inner Assembly |
|
- | |||||
| 2 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 139.99 | ||||
| 3 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 22.55 | ||||
| 4 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 5 | W10208252 | Bracket, Glass |
|
- | |||||
| 6 | W10772469 | Cover, Door Catch (Replaces: W10208413) |
|
$ 85.37 | |||||
| 7 | W11310036 | Glass, Door (Replaces: W10208417) |
|
$ 236.05 | |||||
| 8 | WPW10208419 | Plate, Hinge Retainer (Replaces: W10208419) |
|
Immediately | $ 85.94 | ||||
| 9 | W10772479 | Door Assembly, Outer (Replaces: W10424945) |
|
$ 322.30 | |||||
| 10 | W10424957 | Door, Inner |
|
$ 121.97 | |||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 12 | WPW10208254 | Door Catch Assembly (Replaces: W10208254) |
|
$ 85.34 | |||||
| 13 | W11310035 | Seal, Glass (Replaces: W10329710) |
|
Immediately | $ 98.45 |
