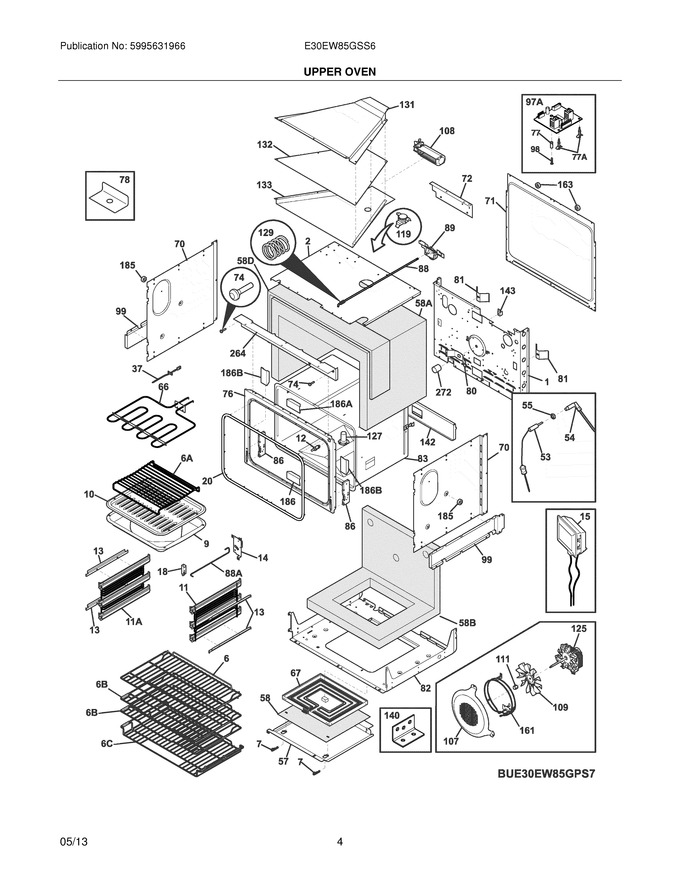

05 - Upper Oven
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259220 | Back,main |
|
$ 88.31 | |||||
| 2 | 318376700 | Shield,oven Top |
|
- | |||||
| 6 | 318240104 | Shelf,oven ,fixed |
|
$ 155.61 | |||||
| 7 | 318368300 | Pin,locking ,(2) |
|
$ 9.93 | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 11 | 318240018 | Glide & Support Assy,oven Shelves ,rh |
|
$ 312.28 | |||||
| 13 | 318603913 | Bracket,ladder Mtg. ,(4) |
|
$ 66.99 | |||||
| 15 | 318241006 | Lamp,oven ,(2) ,halogen |
|
$ 117.71 | |||||
| 18 | 318562300 | Bracket,rod |
|
$ 16.87 | |||||
| 20 | 318239001 | Gasket,oven Door |
|
$ 112.41 | |||||
| 55 | 316247700 | Nut,mounting |
|
$ 18.20 | |||||
| 57 | 318361610 | Panel,service |
|
$ 89.82 | |||||
| 58 | 318330501 | Insulation,service Panel ,12.47 X 14.77 |
|
$ 35.32 | |||||
| 70 | 318259114 | Shield,insulation ,sides ,(2) |
|
$ 96.81 | |||||
| 71 | 318376800 | Panel,rear Box |
|
- | |||||
| 72 | 318377100 | Cover,main Back |
|
- | |||||
| 74 | 318283600 | Bumper |
|
$ 36.65 | |||||
| 76 | 318056241 | Front,oven |
|
$ 166.53 | |||||
| 77 | 318293702 | Spacer,control |
|
$ 16.22 | |||||
| 78 | 318243603 | Bracket,stopping |
|
$ 9.71 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258775 | Shield,insulation ,lower |
|
$ 116.87 | |||||
| 83 | 318386001 | Liner,oven Assy |
|
- | |||||
| 86 | 318241406 | Receptacle,hinge ,(2) |
|
$ 75.83 | |||||
| 88 | 318250203 | Rod,latch ,w/bushing |
|
$ 59.33 | |||||
| 98 | 5303297477 | Screw,6-20 X 1 1/4 |
|
$ 15.17 | |||||
| 99 | 318372600 | Bracket,oven ,(2) |
|
- | |||||
| 107 | 318906601 | Cover,fan |
|
$ 202.63 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318357003 | Adapter Assembly,w/vent Tube ,and Catalyst |
|
$ 35.02 | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318376911 | Channel,air ,upper |
|
- | |||||
| 132 | 318237603 | Divider,air Channel |
|
- | |||||
| 133 | 318237503 | Channel,air ,lower (Replaces: 318237501) |
|
- | |||||
| 140 | 318399313 | Bracket,holding |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 163 | 318531703 | Spacer |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(2) |
|
$ 12.76 | |||||
| 186 | 318236901 | Bracket,oven ,lower |
|
- | |||||
| 264 | 318278611 | Trim,vent |
|
- | |||||
| 272 | 318249412 | Tube,protector |
|
$ 8.24 | |||||
| 11A | 318240019 | Glide & Support Assy,oven Shelves ,lh |
|
$ 301.30 | |||||
| 58A | 318594300 | Insualtion,wrapper ,top & Sides |
|
$ 117.23 | |||||
| 58B | 318594324 | Insualtion,wrapper ,rear & Bottom |
|
$ 80.17 | |||||
| 58D | 318362124 | Insulation,26 X 9.5 X .5 |
|
- | |||||
| 6A | 318365800 | Rack,broiler Pan |
|
$ 52.46 | |||||
| 6B | 318345408 | Shelf,oven ,extendable ,(2) |
|
$ 156.29 | |||||
| 6C | 318345409 | Shelf,oven ,extendable |
|
$ 140.49 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 88A | 318376505 | Rod,latch |
|
$ 13.72 | |||||
| F108 | 318073019 | Motor,blower |
|
$ 518.13 | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F12 | 808136601 | Switch,light ,door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| F125 | 5304463302 | Motor,fan (Replaces: 318398201) |
|
Immediately | $ 259.95 | ||||
| F14 | 318562200 | Sensor Assy,w/switch ,and Bracket |
|
$ 257.99 | |||||
| F161 | 318255512 | Element,convection ,1600 W |
|
$ 148.89 | |||||
| F186 | 318237001 | Bracket,oven ,upper |
|
- | |||||
| F186 | 318237101 | Bracket,oven ,side ,(2) |
|
- | |||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| F53 | 5304503737 | Probe,meat Temp (Replaces: 318601304) |
|
$ 99.33 | |||||
| F54 | 318601206 | Receptacle,probe |
|
Immediately | $ 171.52 | ||||
| F66 | 318255806 | Element,broil ,4000w |
|
$ 282.09 | |||||
| F67 | 318601604 | Element,hidden Bake ,upper Oven |
|
Immediately | $ 260.38 | ||||
| F89 | 318095965 | Motor,latch Assy ,w/brkt & Switch |
|
$ 152.64 | |||||
| F97A | 316519200 | Board,variable Speed |
|
Immediately | $ 256.24 | ||||
| FNI | 318946400 | Bulb,halogen ,g9 ,40w ,120v |
|
Immediately | $ 49.32 | ||||
| FNI | 318578378 | Harness,wiring ,main ,upper Oven |
|
$ 231.06 | |||||
| FNI | 318231870 | Wiring Harness,bake Element |
|
$ 83.42 | |||||
| NI | 318268004 | Insulation,element |
|
$ 9.29 | |||||
| NI | 5304537066 | Lubricant,high Temp ,oven Racks (Replaces: 5304469602) |
|
Immediately | $ 42.62 | ||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 5304400192 | Retainer,wiring |
|
- | |||||
| NI | 5303316982 | Foam Seal,(2) |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 318167300 | Clip,rod |
|
$ 2.84 | |||||
| NI | 5304481623 | Screw,no.10-32x1/2 |
|
$ 9.61 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 5303323277 | Screw,8-18 X 13/32 |
|
$ 8.66 | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black |
|
Immediately | $ 14.18 | ||||
| NI | 318373001 | Bracket,receptacle ,temp Probe |
|
$ 9.87 | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 318341201 | Jumper,electronic ,rack Sensor |
|
$ 16.80 | |||||
| NI | 5304435874 | Plate,covering ,probe |
|
- | |||||
| NI | 5304456367 | Rivet,ladder Bracket ,(8) |
|
$ 13.99 |
