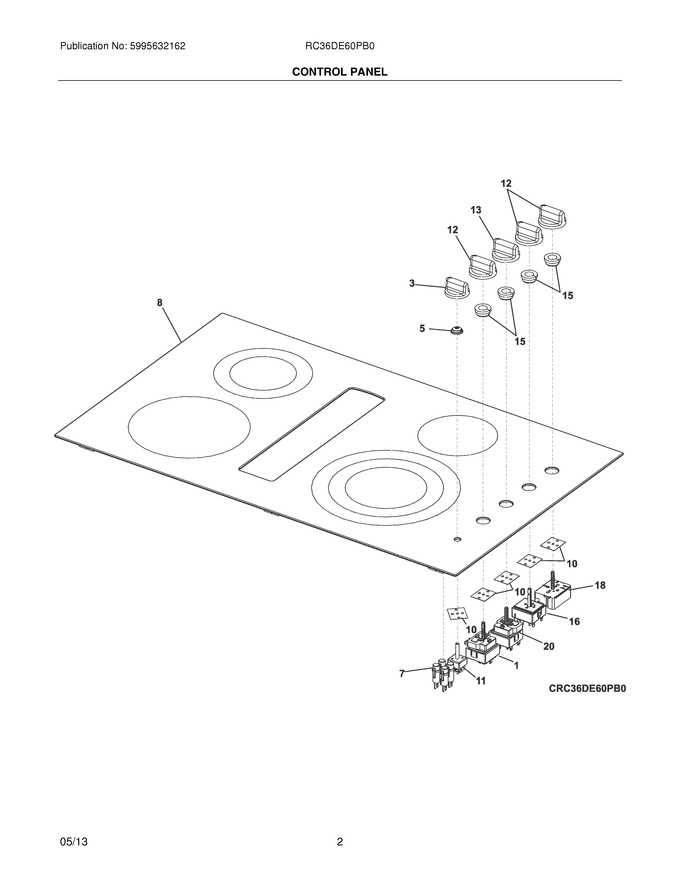

01 - Cover
03 - Control Panel
05 - Main Top/surface Units
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 316564422 | Knob,control ,black ,blower |
|
- | |||||
| 5 | 5304485474 | Seal,stem ,blower Control |
|
- | |||||
| 8 | 5304491867 | Main Top Assembly,glass ,black |
|
- | |||||
| 10 | 5304485480 | Seal,burner Switch ,(5) |
|
- | |||||
| 12 | 316564421 | Knob,control ,black ,(3) |
|
- | |||||
| 13 | 316564423 | Knob,control ,black |
|
- | |||||
| 15 | 318148900 | Bushing,switch Stem ,(4) |
|
$ 54.92 | |||||
| F1 | 5304485489 | Switch,infinite ,triple Element |
|
- | |||||
| F11 | 5304485481 | Switch,blower ,3 Speed ,rotary |
|
$ 178.45 | |||||
| F16 | 318191000 | Switch,infinite ,dual Element |
|
Immediately | $ 102.48 | ||||
| F18 | 318293824 | Switch,surface Element ,small |
|
Immediately | $ 97.07 | ||||
| F20 | 318531500 | Switch,infinite ,turbo Element |
|
Immediately | $ 110.14 | ||||
| F7 | 5304485476 | Light,indicator ,(4) |
|
- |
