SELECT A DIAGRAM

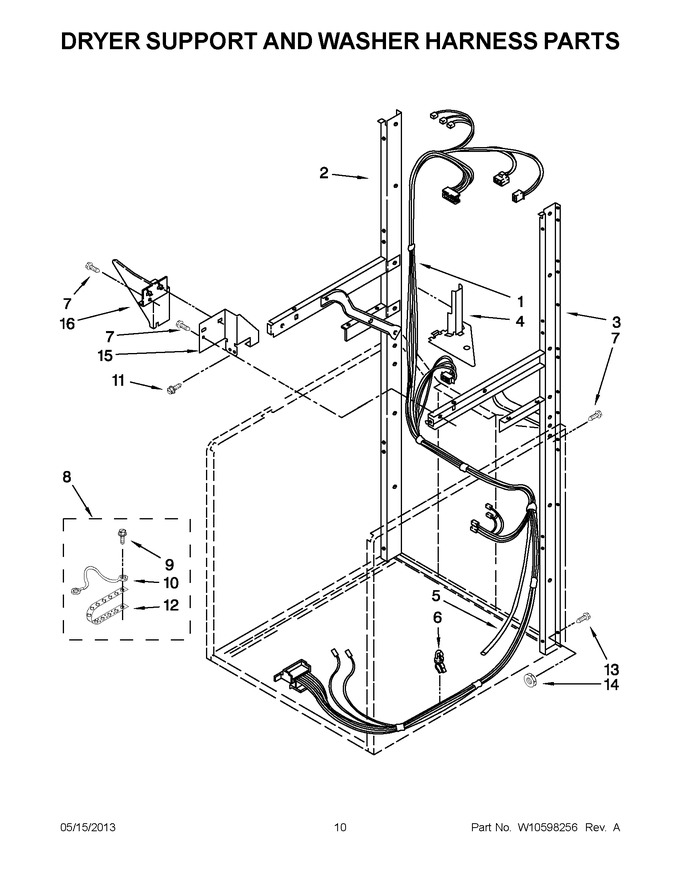

01 - Washer/dryer Control Panel Parts


02 - Dryer Front Panel And Door Parts


03 - Dryer Cabinet And Motor Parts


04 - Dryer Bulkhead Parts


05 - Dryer Support And Washer Harness Parts


06 - Washer Top And Lid Parts


07 - Washer Cabinet Parts


08 - Brake, Clutch, Gearcase, Motor And Pump Parts


09 - Machine Base Parts


10 - Agitator, Basket And Tub Parts


11 - Gearcase Parts


12 - Brake And Drive Tube Parts


13 - Water System Parts


14 - 3402855 Burner Assembly


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10545604		Harness, Washer				$ 266.44
2	3388851		Assembly, Channel (left)				$ 288.73
3	3388850		Assembly, Channel (right)				$ 289.31
4	3390609		Shield, Harness		Appelez-nous	-
5	W10834213		Hose, Pressure Switch   (Replaces: W10564195)			Immediately	$ 28.51
6	W10210799		Clip, Harness		Appelez-nous	-
7	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
8	685463		Kit, Grounding		Appelez-nous	-
9	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
10	685449		Wire		Appelez-nous	-
11	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
12	22965		Strap, Grounding		Appelez-nous	-
13	3400300		Bolt		Appelez-nous	-
14	WP8533952		Nut, Hex   (Replaces: 8533952)				$ 74.57
15	3392232		Shield, Front		Appelez-nous	-
16	W10513339		Shield, Thermostat				$ 26.25
