SELECT A DIAGRAM

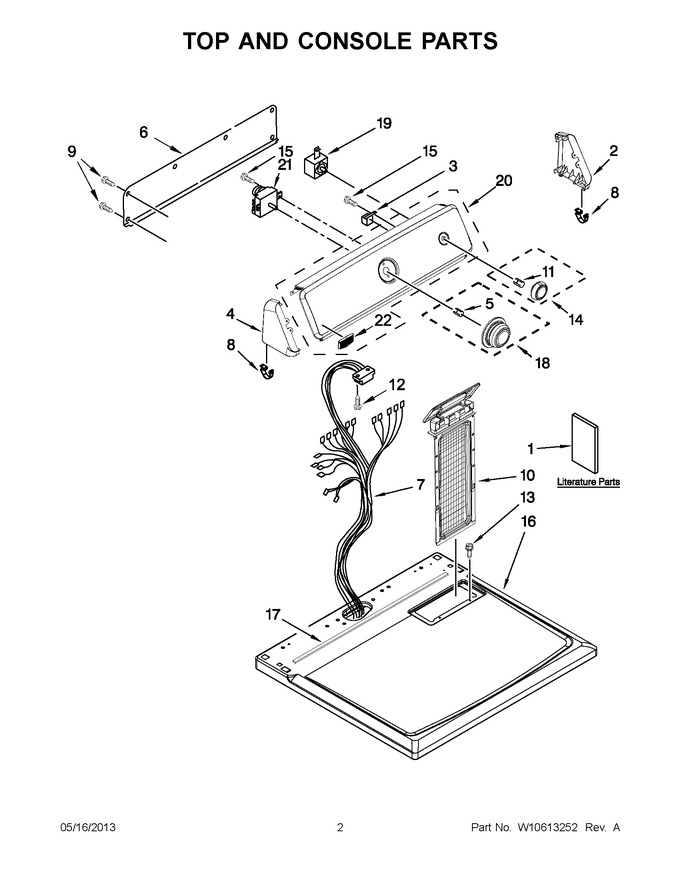

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514185		Installation Instructions		Appelez-nous	-
1	W10185990		Wiring Diagram		Appelez-nous	-
1	W10096990		Use & Care Guide		Appelez-nous	-
2	WPW10193821		Endcap Assembly, Right Hand (white)   (Replaces: W10193821)				$ 74.72
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10193824		Endcap Assembly, Left Hand (white)   (Replaces: W10193824)				$ 74.39
5	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
6	W10103406		Panel, Rear (console)				$ 135.31
7	W10366760		Harness, Wiring		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 17.40
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WPW10317455		Knob, Push-to-start (grey)   (Replaces: W10317455)				$ 63.33
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WPW10225059		Top (white)   (Replaces: W10225059)				$ 250.69
17	W10316616		Seal, Foam				$ 27.79
18	WPW10317454		Knob, Timer Assembly (grey)   (Replaces: W10317454)				$ 63.47
19	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 115.10
20	W10115474		Assembly, Console Panel & Bracket				$ 229.16
21	W11043385		Timer Assembly (60 Hz.)   (Replaces: W10185987)				$ 368.35
22	W10323734		Assembly, Badge				$ 63.95

    View Diagram in Separate Window       Print Part List
