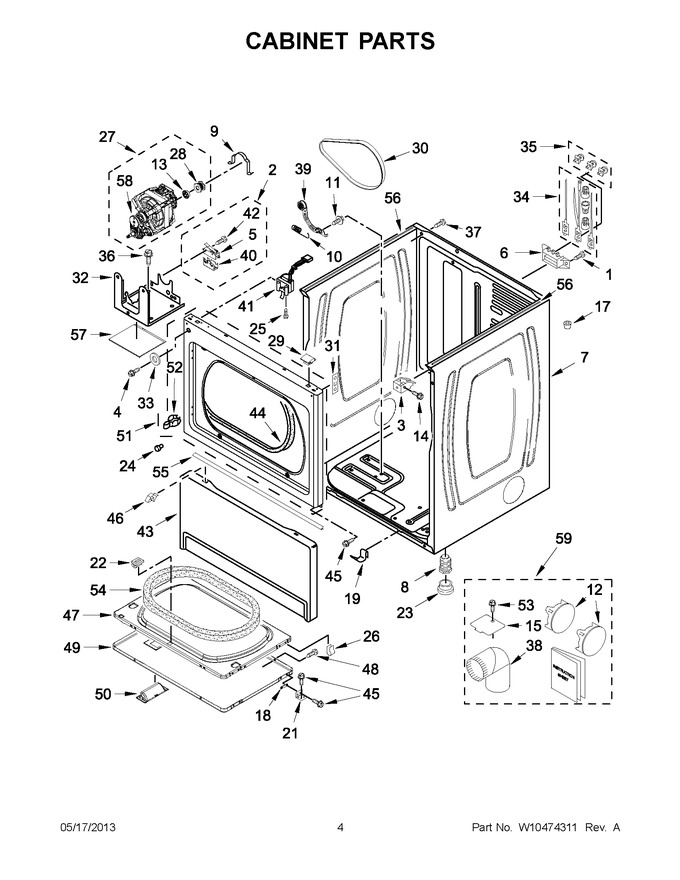

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
2	W11236387		Assembly, Switch   (Replaces: W10259136)		Appelez-nous	-
3	3391846		Clip, Front Panel				$ 19.04
4	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
5	W10410873		Assembly, Switch & Actuator		Appelez-nous	-
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 20.72
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 377.29
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 22.11
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.22
12	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 68.99
13	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
14	681615		Screw   (Replaces: 3391915)				$ 12.49
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.06
17	356674		Cone, Wedge				$ 33.19
18	W10191265		Plug, Hinge (white)				$ 39.85
19	WPW10291934		Clip   (Replaces: W10291934)				$ 6.98
21	WPW10279703		Assembly, Hinge & Pin   (Replaces: W10279703)				$ 65.00
22	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.04
24	693152		Bumper				$ 9.86
25	WP3395530		Screw   (Replaces: 697773)				$ 6.93
26	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 6.94
27	W10416574		Assembly, Motor 50 Hz.   (Replaces: W10289662)				$ 299.25
28	W10167237		Pulley		Appelez-nous	-
29	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 6.93
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 39.60
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.00
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 113.26
33	3391948		Washer		Appelez-nous	-
34	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.07
37	W10850756		Screw   (Replaces: 8533974)				$ 6.98
38	WPW10416072		Elbow   (Replaces: 49026)				$ 24.14
39	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 81.06
40	8564011		Bracket, Switch				$ 16.35
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 50.08
42	3400934		Assembly, Screw & Insulator		Appelez-nous	-
43	WP3406797		Toe Panel (white)   (Replaces: 697215)				$ 214.50
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw   (Replaces: 342055)				$ 6.81
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: W10323061)				$ 258.32
48	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
49	W11663440		Door, Front   (Replaces: W10322546)				$ 233.43
50	3389522		Handle, Door				$ 70.11
51	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 324.96
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
53	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.47
54	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
55	W10576519		Seal, Deflector		Appelez-nous	-
56	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 34.04
57	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 19.96
58	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 31.71
59	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 68.99
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
