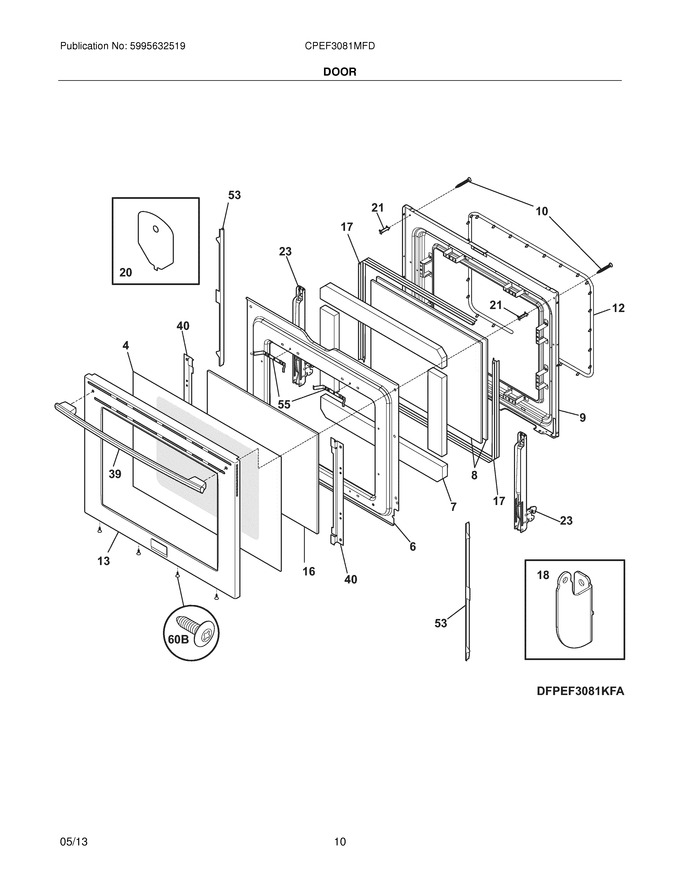

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452721		Glass,oven Door ,grey ,w/foil				$ 206.01
6	316503800		Shield,wool				$ 106.89
7	316513000		Insulation,oven Door				$ 81.50
8	316502500		Glass,door ,inner ,(2)			Immediately	$ 115.65
9	316503618		Liner,oven Door				$ 133.25
10	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
12	316405000		Seal,oven Door			Immediately	$ 179.17
13	316571404		Panel Assembly,,door ,stainless ,outer, W/badge				$ 90.25
16	316502601		Glass,door ,airwash			Immediately	$ 207.85
17	5304503172		Spacer,door Glass ,(2)   (Replaces: 316502101)				$ 25.79
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
20	316533801		Plate,distribution ,load			Immediately	$ 5.67
21	316284100		Spacer,door Handle ,(2)				$ 14.89
23	316575908		Hinge,oven Door ,teal				$ 145.44
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
40	316530403		Bracket-airwash Glass Wash				$ 33.18
53	5304532042		Shield,door Filler ,black ,(2)   (Replaces: 316408201)				$ 25.79
55	316530800		Bracket,glass Spacer ,(4)				$ 23.15
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316483102		Label,anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
