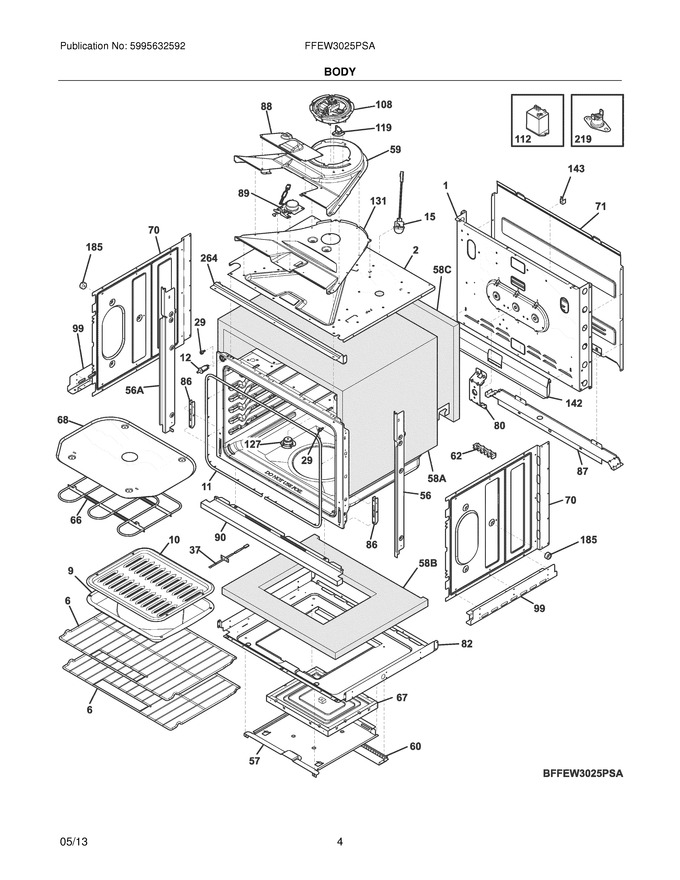

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017304		Panel,main Back		Appelez-nous	-
2	139028100		Shield,insulation ,top		Appelez-nous	-
6	139011800		Rack,oven ,w/handle				$ 128.00
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 140.34
29	316517600		Spacer,oven Door				$ 12.05
56	318903747		Trim,side ,black ,rh				$ 112.77
57	807988901		Panel,service ,bake Element		Appelez-nous	-
59	139027600		Duct,cooling Fan ,upper				$ 85.76
60	807285601		Shield,heat ,oven Bottom		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	807890403		Shield,broil Element		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139020000		Shield,rear Wire ,main Back				$ 99.23
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	807988801		Shield,insulation ,lower		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	139020100		Bracket,cable Mtg.		Appelez-nous	-
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 24.10
90	139008709		Trim,base ,stainless				$ 200.57
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct,cooling Fan ,lower				$ 73.00
142	139018000		Shield,air Deflector ,main Back		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	139017601		Trim,vent ,black ,front				$ 47.78
56A	318903748		Trim,side ,black ,lh				$ 80.01
58A	139001700		Insulation,oven Wrapper ,top & Sides		Appelez-nous	-
58B	807989001		Insualtion,oven Bottom				$ 102.78
58C	139021400		Insualtion,oven Back		Appelez-nous	-
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F112	318112703		Relay				$ 66.99
F112	5308014215		Screw`6-20 X 0.312				$ 2.28
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F12	316445501		Switch,oven Light ,door Frame				$ 90.01
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 20.56
F219	318003624		Thermostat,safety ,105/120			Immediately	$ 23.39
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	5304521498		Element,broil ,6 Pass ,3400w   (Replaces: 139008900)			Immediately	$ 87.21
F67	318601604		Element,hidden Bake ,upper Oven			Immediately	$ 260.38
F89	139021301		Motor,latch Assy. ,3 Pole				$ 118.56
FNI	139802000		Harness,wiring ,main		Appelez-nous	-
FNI	5304506983		Box & Wires Assy   (Replaces: 318394441)				$ 133.47
FNI	807448001		Harness,wiring ,latch Motor		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	5304470882		· Screw,anti-tip ,8 - 5/8 ,black ,(2)				$ 13.46
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	318579001		Bracket,wire				$ 11.08
NI	318165800		Spacer				$ 17.72
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	807597603		Screw,self Tapping ,8-18 X 11/32 ,(2)				$ 9.22
