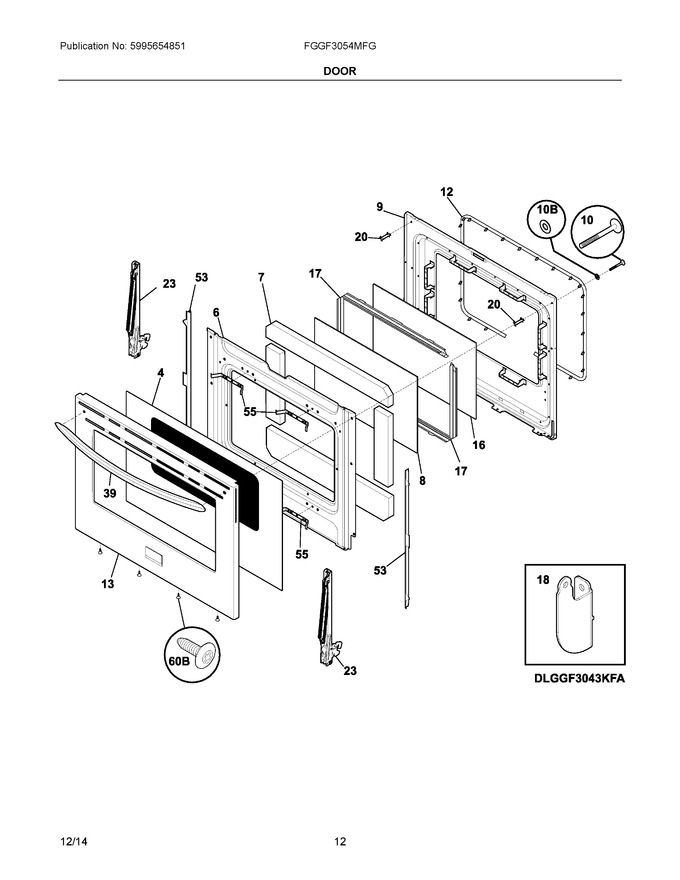

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452723		Glass, Oven Door, Black, W/foil			Immediately	$ 226.00
6	316402316		Shield, Wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423811		Liner, Oven Door				$ 141.54
10	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 31.17
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
13	316604011		Panel, Oven Door, Stainless, No Nameplate   (Replaces: 316407811)				$ 130.63
14	316572700		Nameplate				$ 81.50
16	316117501		Glass, Oven Door, Inner				$ 148.16
17	5304504811		Spacer, Door Glass, (2)   (Replaces: 316402403)			Immediately	$ 25.02
18	316547900		Link, Door, (2), Auto Rack				$ 20.56
20	316284100		Spacer, Door Handle, (2)				$ 14.89
23	316575906		Hinge, Oven Door			Immediately	$ 93.29
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554005)			Immediately	$ 168.44
53	5304532043		Shield, Filler, Door, (2)   (Replaces: 316408101)				$ 37.41
55	316408300		Bracket, Glass Support, (4)				$ 21.23
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
