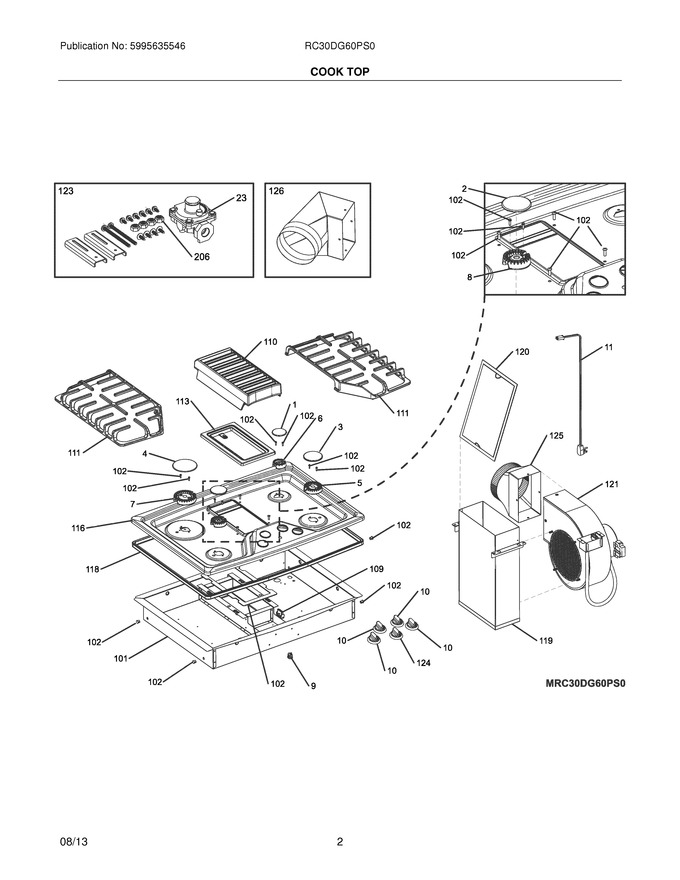

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
2	5304508442		Cap,9.5k Burner ,matte ,black   (Replaces: 316261804)			Immediately	$ 36.55
3	316261904		Cap,12k Burner ,black				$ 46.36
4	5304508468		Cap,17k Burner ,black   (Replaces: 316262104)				$ 49.45
5	316438000		Burner,sealed ,12k				$ 67.81
6	316438200		Burner,sealed ,5k			Immediately	$ 56.70
7	316438400		Burner,sealed ,17k			Immediately	$ 83.42
8	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
9	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
10	318948100		Knob,top Valve ,stainless ,(4)		Appelez-nous	-
11	318144006		Cord,service		Appelez-nous	-
101	5304486428		Box,burner ,assembly		Appelez-nous	-
102	5304486429		Hardware Assembly,fastener/screws ,misc.		Appelez-nous	-
110	5304491958		Grate,vent		Appelez-nous	-
111	5304491959		Grate Assy,double ,rh & Lh		Appelez-nous	-
113	5304491961		Seal,vent Grate		Appelez-nous	-
116	5304491962		Main Top,assembly ,stainless ,w/gasket		Appelez-nous	-
118	5304486442		Seal,burner Box		Appelez-nous	-
119	5304491963		Plenum Assembly,blower		Appelez-nous	-
120	5304485601		Filter,grease				$ 216.27
124	5304491966		Knob,blower ,stainless		Appelez-nous	-
125	5304485473		Transition,exhaust		Appelez-nous	-
126	5304488297		Duct,transition ,90 Deg Kit		Appelez-nous	-
206	5304486445		Nut,insert ,1/4`` ,nylon ,blower ,(4)		Appelez-nous	-
F109	5304485592		Harness,wiring ,blower		Appelez-nous	-
F121	5304491964		Blower Assembly				$ 1,079.43
F123	5304491965		Installation Kit,mounting ,w/regulator		Appelez-nous	-
F23	318122706		Regulator,pressure				$ 114.83
