SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Microwave

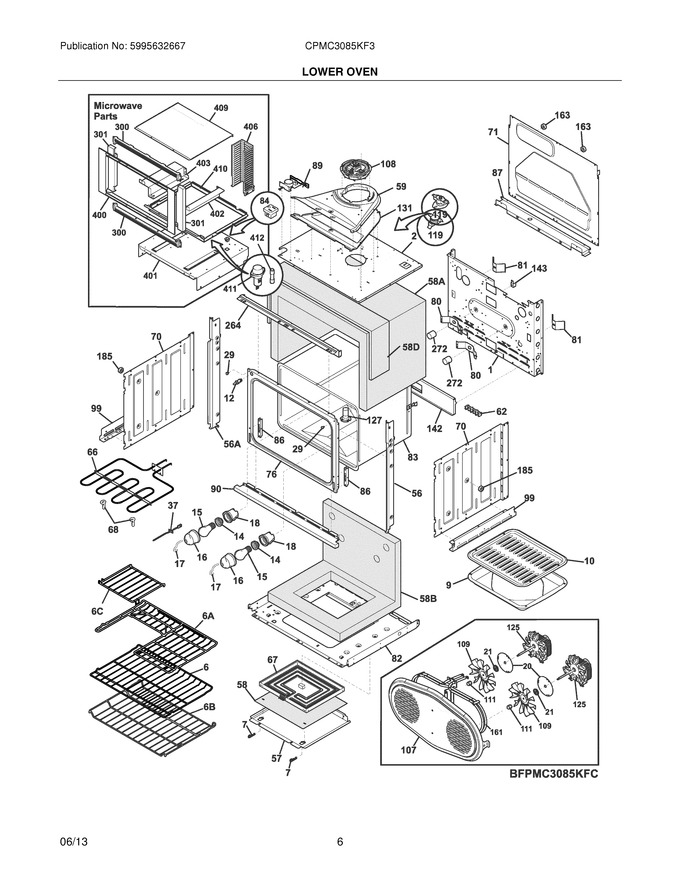

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259224		Back,main		Appelez-nous	-
2	318570500		Panel,insualtion ,top				$ 86.89
6	318922301		Rack,oven   (Replaces: 318922315)			Immediately	$ 163.05
7	318368300		Pin,locking ,(2)				$ 9.93
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
56	318276354		Trim,side Filler ,grey ,rh		Appelez-nous	-
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318570600		Duct,cooling Fan		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318261452		Liner,oven Assy				$ 179.95
86	318561100		Receptacle,hinge ,(2)   (Replaces: 318561101)				$ 21.23
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
90	318259859		Trim,base ,stainless				$ 163.07
99	318256203		Bracket,side ,bottom ,(2)		Appelez-nous	-
107	318550200		Cover,fan ,dual				$ 97.81
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
131	318574800		Bottom,cooling Duct		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257706		Trim,oven ,black ,front		Appelez-nous	-
272	318249412		Tube,protector				$ 8.24
300	318925002		Trim,microwave Frame ,grey ,top/bottom ,(2)				$ 72.61
301	318925104		Trim,microwave Frame ,grey ,sides ,(2)				$ 59.80
400	318930203		Frame,microwave ,stainless				$ 525.79
401	318297207		Plate,support ,microwave ,27``				$ 192.94
402	318276204		Bracket,base Pad ,rh		Appelez-nous	-
403	318276206		Bracket,base Pad ,lh		Appelez-nous	-
406	318277201		Shield,microwave Rear		Appelez-nous	-
409	318295301		Bracket,top Trim				$ 113.61
410	318297111		Flue,black				$ 165.17
56A	318276355		Trim,side Filler ,grey ,lh		Appelez-nous	-
58A	318594302		Insualtion,wrapper ,top & Sides				$ 106.94
58B	318594323		Insualtion,wrapper ,rear & Bottom				$ 79.85
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6A	318926803		Rack,half ,oven				$ 165.48
6B	318919810		Rack,oven		Appelez-nous	-
6C	318929702		Insert,half Rack				$ 100.46
F108	318575603		Motor,cooling Fan			Immediately	$ 184.19
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F161	318535300		Element,convection ,duo				$ 232.26
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F411	318647300		Holder,fuse   (Replaces: 318576200)			Immediately	$ 217.73
F412	318647300		Fuse,20 Amp   (Replaces: 318576100)			Immediately	$ 217.73
F66	318255807		Element,broil ,4000w				$ 323.19
F67	318601604		Element,hidden Bake ,upper Oven			Immediately	$ 260.38
F84	318146833		Outlet-electrical,miniature ,black-glossy				$ 106.26
F89	318261229		Motor,latch Assy			Immediately	$ 93.62
FNI	318572714		Harness,wiring ,latch		Appelez-nous	-
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318572713		Harness,wiring ,main		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	318268004		Insulation,element				$ 9.29
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318579001		Bracket,wire				$ 11.08
NI	318165800		Spacer				$ 17.72
NI	5303307406		Screw,6-32 X 3/8 ,black ,(2)				$ 11.29
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
