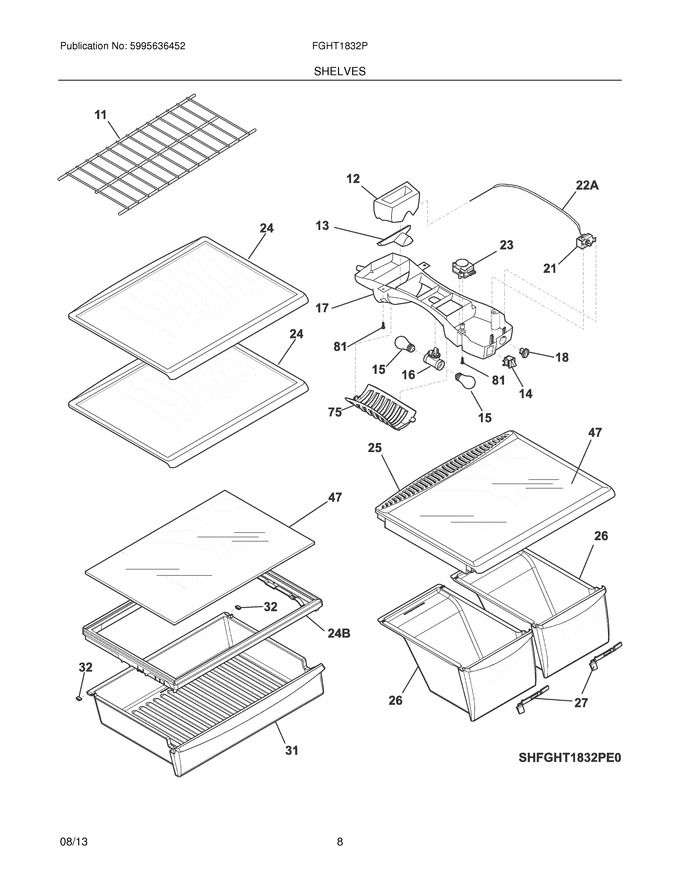

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358005		Shelf,freezer ,full-width ,wire		Appelez-nous	-
12	241542001		Diffuser,air ,top			Immediately	$ 74.42
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
17	240352704		Control Box				$ 122.69
18	240360801		Knob-temp Control				$ 43.95
24	240358926		Shelf-``spill-safe``,sliding   (Replaces: 240358925)			Immediately	$ 129.17
25	242201802		Cover-crisper Pan			Immediately	$ 123.10
26	242218505		Pan,crisper ,(2) ,w/humid Cntl   (Replaces: 242218503)				$ 147.13
27	242215901		Slide,humidity Contrl				$ 18.95
31	242322201		Meat Pan,fw Pantry ,w/slide Clips				$ 266.47
32	240349801		Clip-slide,pan				$ 20.48
47	240350608		Insert-pan Cover,23.82`` X 15.50`` ,glass			Immediately	$ 45.50
75	240412701		Shield,light   (Replaces: 240412702)				$ 16.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24B	242218602		Cover,deli Pan ,full Width ,w/slide   (Replaces: 242218601)			Immediately	$ 121.78
F14	241554901		Switch-light/lamp				$ 70.88
F15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
F16	240364201		Socket-light/lamp,dual   (Replaces: 240364202)				$ 100.50
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846604		Timer-defrost   (Replaces: 241809401)			Immediately	$ 24.58
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	240568606		Seal   (Replaces: 240568607)				$ 12.76
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
NI	242321207		Label,energy Guide		Appelez-nous	-
NI	241705801		Spacer-shelf				$ 7.09
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36

    View Diagram in Separate Window       Print Part List
