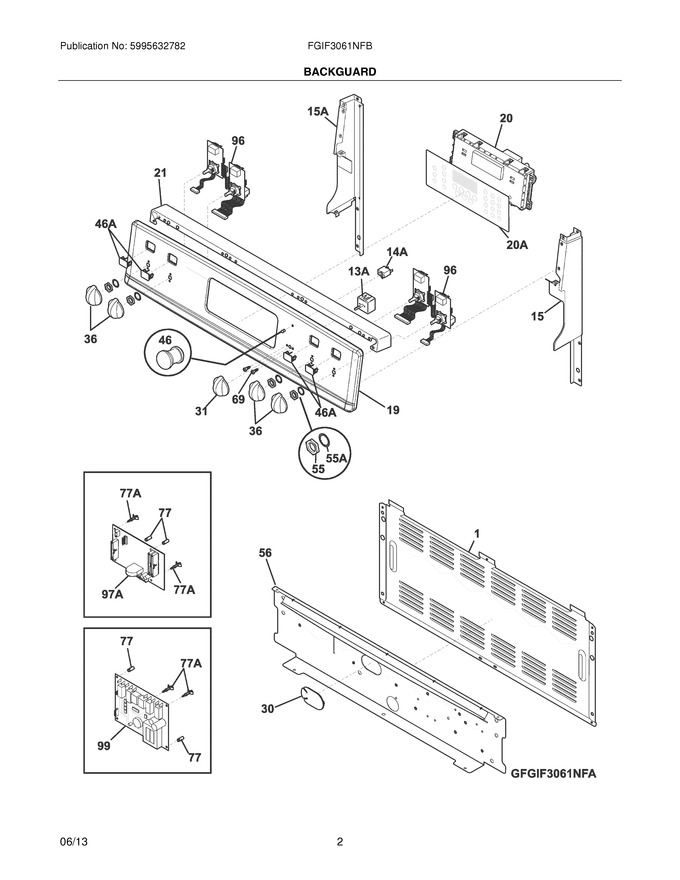

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316557600 | Shield,rear Wall |
|
$ 70.04 | |||||
| 15 | 316546702 | Cap,backguard ,black ,rh End |
|
$ 52.55 | |||||
| 19 | 316572443 | Panel,backguard ,br Alum |
|
$ 251.00 | |||||
| 21 | 316546605 | Cap,backguard ,black ,top (Replaces: 316546601) |
|
$ 66.91 | |||||
| 30 | 316577600 | Plug,button ,oval ,harness |
|
$ 14.89 | |||||
| 31 | 316564407 | Knob,control ,stainless ,(5) |
|
$ 121.35 | |||||
| 36 | 316564408 | Knob,control ,stainless ,mini Oven |
|
$ 119.23 | |||||
| 46 | 316557300 | Lens-light/lamp,indicator ,clear |
|
Immediately | $ 16.77 | ||||
| 55 | 316247700 | Nut,mounting |
|
$ 18.20 | |||||
| 56 | 316370109 | Shield,backguard ,black |
|
$ 45.15 | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 96 | 316445605 | Board,display ,controls ,potentiometers |
|
$ 348.74 | |||||
| 100 | 5303289910 | Screw,truss Sqdr ,8a X 1`` |
|
$ 5.67 | |||||
| 14A | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15A | 316546703 | Cap,backguard ,black ,lh End |
|
$ 64.47 | |||||
| 20A | 316419836 | Overlay,clock ,black ,es515 |
|
Immediately | $ 75.93 | ||||
| 46A | 316448000 | Lens,led Display |
|
$ 29.51 | |||||
| 55A | 316247800 | Washer,lock ,mtg |
|
$ 18.20 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F13A | 5304508926 | Switch,infinite ,warmer (Replaces: 316095503) |
|
Immediately | $ 84.18 | ||||
| F20 | 5304495522 | Controller,electronic ,es540 (Replaces: 316560132) |
|
Immediately | $ 474.64 | ||||
| F97A | 316578323 | Board,power ,uib |
|
$ 245.40 | |||||
| F99 | 316435703 | Board,power Supply |
|
Immediately | $ 394.48 | ||||
| FNI | 316580519 | Harness,wiring ,to Membrane ,uib |
|
- | |||||
| FNI | 5304517543 | Harness,wiring ,uib ,to Filter Board (Replaces: 316580518) |
|
$ 55.42 | |||||
| FNI | 316580520 | Harness,wiring ,uib ,to Membrane |
|
- | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316305000 | Bushing,open Hole ,induction Leads |
|
$ 21.89 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
