SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Microwave


07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram

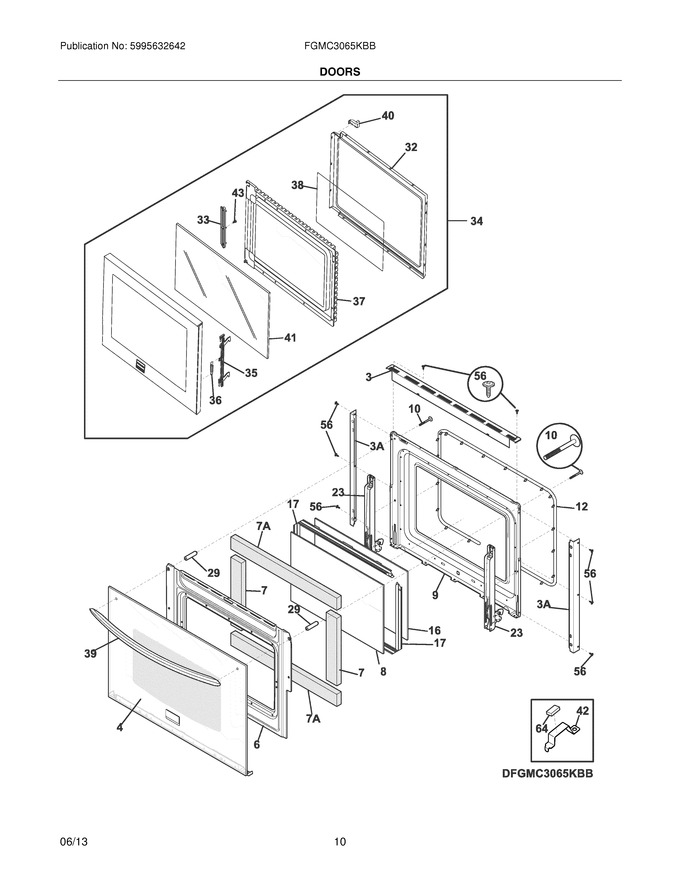

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260205		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318261316		Glass Assy.,oven Door ,black ,outer ,w/trim & Badge				$ 257.80
6	318260531		Baffle,door				$ 79.05
7	318372017		Insulation,door				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318411650		Liner,oven Door				$ 138.71
10	5304477986		Screw,10-24 X 1.770 ,handle Mtg				$ 16.22
12	318053132		Gasket,oven Door Seal			Immediately	$ 159.56
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,(2)   (Replaces: 318264724)				$ 72.05
23	318567101		Hinge,oven Door ,(2)				$ 76.18
29	318014411		Spacer,door				$ 18.48
32	5304440861		Choke Cover,inner Door				$ 73.02
33	5304440862		Stop,door Glass		Appelez-nous	-
34	5304474854		Door Assembly,complete ,black ,w/badge		Appelez-nous	-
35	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
36	5304440316		Spring,door Latch			Immediately	$ 61.00
37	5304440857		Panel,inner Door ,black				$ 192.29
38	5304440860		Seal,door ,film				$ 63.09
39	318927401		Handle,door/drawer ,black				$ 189.11
40	5304442145		Door Stop		Appelez-nous	-
41	5304472854		Panel,door Glass ,black		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
43	5304452259		Screw		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,door				$ 17.72
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
