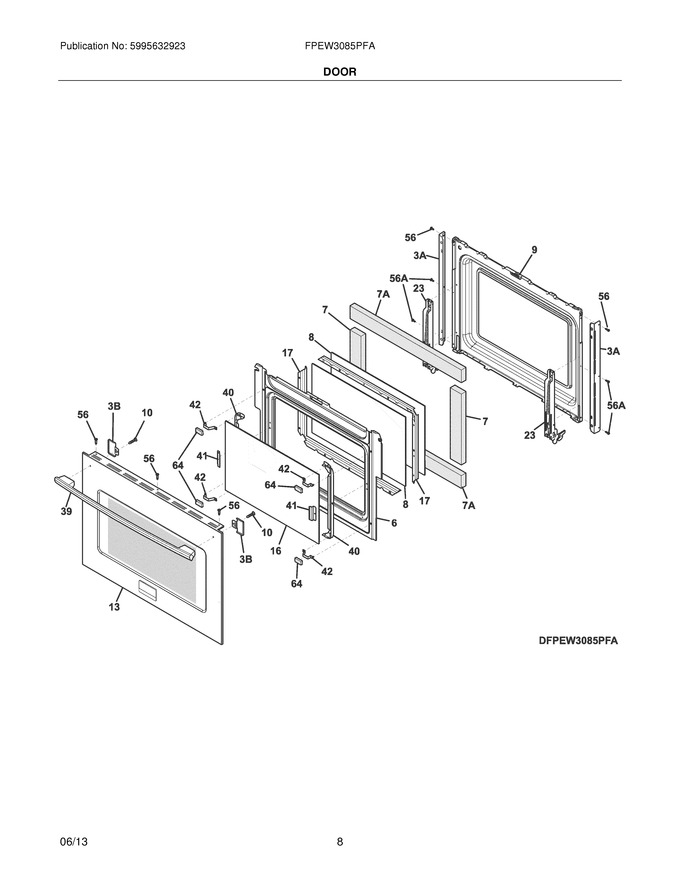

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006903		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier ,inner ,hrc2   (Replaces: 316117502)				$ 116.95
9	139000411		Liner,oven Door   (Replaces: 139000410)				$ 152.43
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
13	139099609		Door Assembly,outer ,steel/glass ,stainless,w/trim		Appelez-nous	-
16	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer,glass ,(2)   (Replaces: 318264712)				$ 72.05
23	316575915		Hinge,oven Door ,lilac ,(2)   (Replaces: 139014301)				$ 166.09
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Panel ,(2)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer				$ 17.72
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 32.62
3B	318262104		Cover,rear Door ,black ,(2)				$ 24.99
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
7A	318372016		Insulation,door				$ 17.72
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
