SELECT A DIAGRAM

01 - Cover Sheet

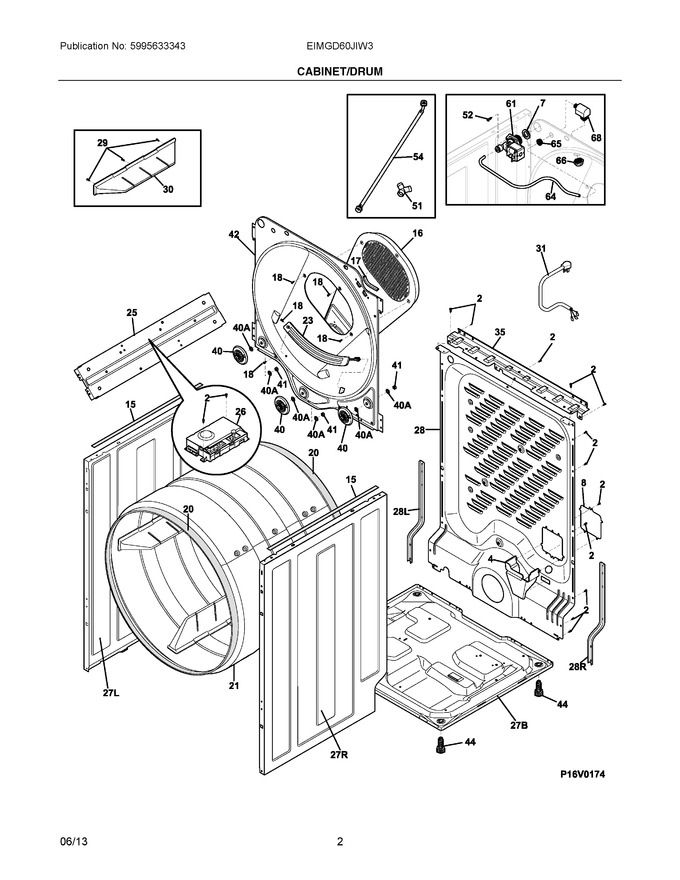

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792100		Bracket, Main, Terminal				$ 29.07
7	5303161296		Washer, Inlet Hose			Immediately	$ 2,372.96
8	134694400		Cover, Terminal Block				$ 72.18
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304509715		Duct, Heat, Rear   (Replaces: 137199820)			Immediately	$ 124.34
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134711200		Thermistor, Inlet			Immediately	$ 51.03
20	134705900		Seal, Felt, Drum				$ 73.45
21	134708210		Drum, Dryer, Assembly 38		Appelez-nous	-
23	134786100		Sensor, Moisture, Assembly				$ 84.27
25	137567000		Bracket, Mounting, Main Cntl Box		Appelez-nous	-
26	809160305		Control Board, Printed Circuit, With Housing   (Replaces: 137260130)				$ 284.92
28	137560425		Panel, Backsheet   (Replaces: 137560413)			Immediately	$ 235.53
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137033700		Vane, Drum		Appelez-nous	-
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 88.20
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134713100		Bracket, Top Panel Mtg., Rear				$ 70.82
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
44	134158000		Leveling Leg, Screw		Appelez-nous	-
45	137556623		Bulkhead, Panel, Rear				$ 311.52
51	5304500709		Fitting, "y" Hose, Adapter   (Replaces: 137016710)			Immediately	$ 12.56
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
53	137471800		Hose, Water Inlet, 12#				$ 2,372.96
54	5304503984		Hose, Inlet 48" Subassembly   (Replaces: 137471700)				$ 46.07
61	137544800		Valve, Mist Low Profile			Immediately	$ 78.44
64	5304529773		Tube, Water Valve To, Misting Nozzle   (Replaces: 137402400)				$ 77.30
65	137017200		Grommet, Misting Tube				$ 3.55
66	5304529773		Nut, Nozzle   (Replaces: 137017300)				$ 77.30
67	137017400		Clip, Mounting, Water Valve				$ 20.32
68	5304529773		Adapter, Water Nozzle, Complete   (Replaces: 137030100)				$ 77.30
27B	134690201		Base, Dryer, Washed		Appelez-nous	-
27L	134712610		Panel, Left Side, White				$ 246.17
27R	134712710		Panel, Right Side, White				$ 197.56
28A	137029800		Bracket, Reinforcement, Backsheet		Appelez-nous	-
30A	5304531775		Vane, Mixing, Smooth   (Replaces: 137028500)				$ 20.24
40A	134716700		Washer, Flat				$ 2.12
NI	134926600		Damper, Sound				$ 14.18
NIA	134930800		Wiring Harness, Moisture Sensor			Immediately	$ 48.44
NIA	137240500		Brace, Side Panel		Appelez-nous	-
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	134790900		Strain Relief, 120, Pwr Cord		Appelez-nous	-
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIB	137360810		Protector, Edge, Side Brace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
