01 - Cooktop Parts

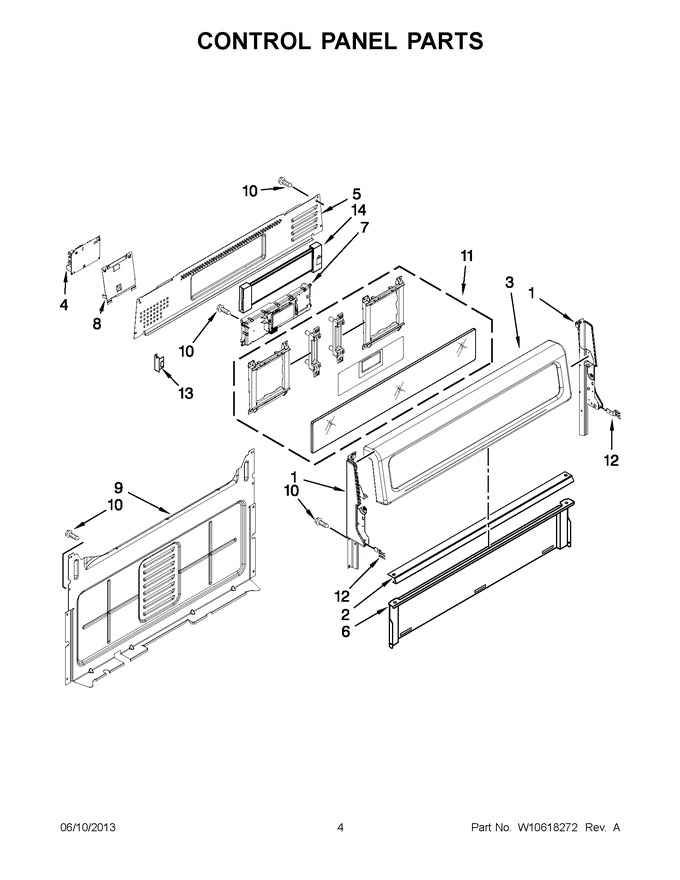

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 1 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 2 | W10516123 | Bracket, Console Mounting (gas) |
|
- | |||||
| 3 | W10347960 | Console, Panel (stainless) |
|
- | |||||
| 4 | WPW10511278 | Module-spark (4+2) Dsi (Replaces: W10511278) |
|
Immediately | $ 215.63 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 110.48 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 91.45 | |||||
| 7 | WPW10686476 | Control, Mrc (Replaces: W10340701) |
|
$ 378.00 | |||||
| 8 | W10516577 | Bracket, Mounting |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 11 | WPW10726781 | Assembly, Overlay (Replaces: W10324415) |
|
$ 576.40 | |||||
| 12 | 8523412 | Bracket, Rear Cooktop |
|
$ 143.91 | |||||
| 13 | WPW10475149 | Module, Spark (2+0 Filtered) (Replaces: W10475149) |
|
Immediately | $ 161.15 | ||||
| 14 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 102.81 |
