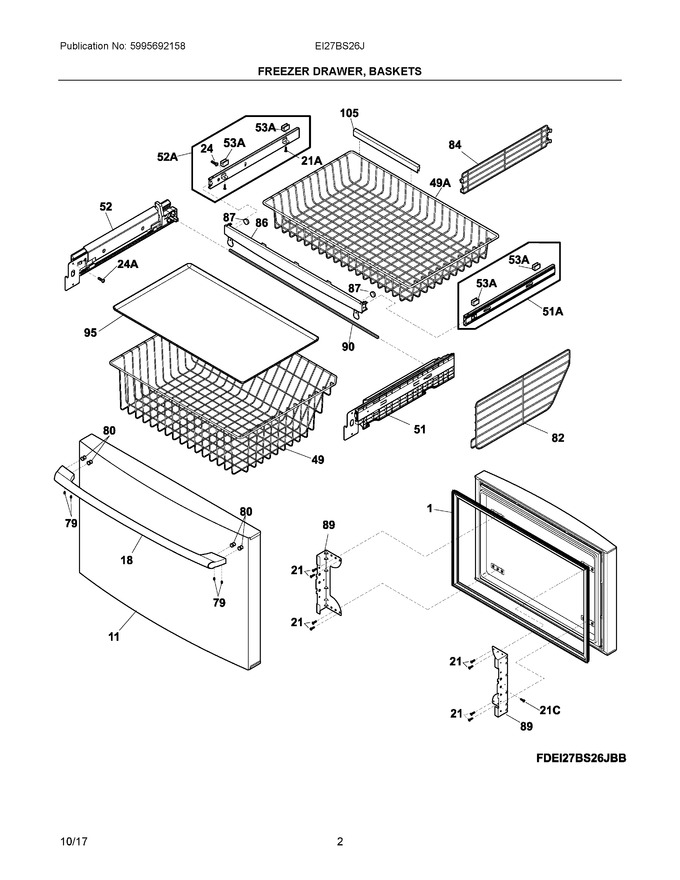

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket-frzr Drawer, White, Magnetic (Replaces: 241778302) |
|
Immediately | $ 86.28 | ||||
| 11 | 241987917 | Door-frzr, Stainless, Complete Assy |
|
$ 603.15 | |||||
| 18 | 241881310 | Handle-frzr Drawer, Stainless |
|
$ 271.45 | |||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 242026802 | Basket-frzr, Lower |
|
$ 216.41 | |||||
| 51 | 5303918692 | Slide Assembly, Basket Lower, Rh, Freezer Drawer (Replaces: 242130510) |
|
$ 257.27 | |||||
| 52 | 5303918691 | Slide Assembly, Basket Lower, Lh, Freezer Drawer (Replaces: 242130509) |
|
$ 258.70 | |||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 242027103 | Divider, Basket, Lower |
|
- | |||||
| 84 | 241780904 | Divider, Basket, Upper |
|
$ 71.29 | |||||
| 86 | 242090701 | Bar-stabilizer, Freezer Drawer |
|
$ 63.32 | |||||
| 87 | 241812202 | Magnet, Door |
|
$ 72.30 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 242136903 | Bar-timing |
|
- | |||||
| 95 | 242090801 | Tray, Spill Guard |
|
- | |||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 21C | 241899703 | Screw, Truss Head, #10-32 X 1/4, Zinc |
|
$ 15.92 | |||||
| 24A | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 49A | 241780815 | Basket-frzr, Upper |
|
$ 194.78 | |||||
| 51A | 241894223 | Slide Assembly, Basket, Rh, Freezer Drawer |
|
Immediately | $ 132.53 | ||||
| 52A | 241894224 | Slide Assembly, Basket, Lh, Freezer Drawer |
|
$ 131.83 | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| NI | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 241601002 | Wrench, Allen |
|
- | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 | |||||
| NIA | 241701902 | Screwdriver, Hex, 3/32", Ball Driver |
|
$ 19.85 | |||||
| NIA | 5304497384 | Plate, Tapping (Replaces: 242147601) |
|
$ 15.60 | |||||
| NIA | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NIAA | 242039701 | Screw, Basket Slides |
|
$ 13.46 | |||||
| NICA | 5304497384 | Plate, Tapping (Replaces: 241892901) |
|
$ 15.60 |
