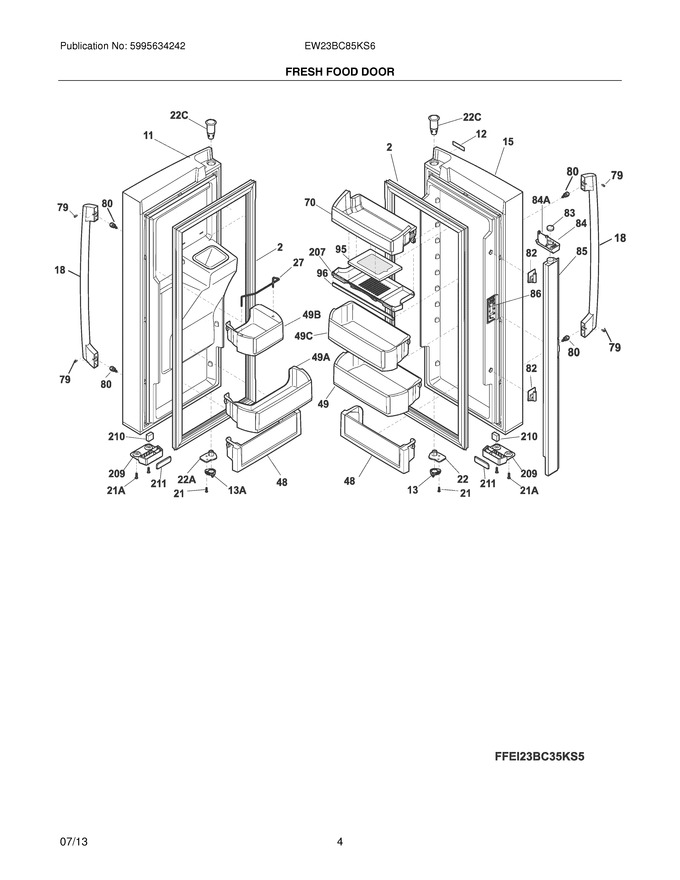

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241988086 | Door-refr,stainless ,lh ,lh |
|
$ 691.03 | |||||
| 12 | 241873301 | Nameplate,electrolux ,stainless |
|
$ 11.15 | |||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 18.43 | |||||
| 15 | 241988085 | Door-refr,stainless ,rh |
|
$ 519.47 | |||||
| 18 | 241881309 | Handle-door,stainless |
|
$ 256.62 | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 15.60 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 27 | 241752702 | Retainer,tall Bottle |
|
$ 39.44 | |||||
| 48 | 241804303 | Bin-door,can |
|
$ 93.38 | |||||
| 49 | 241804006 | Bin-door,gallon |
|
$ 110.61 | |||||
| 70 | 242131801 | Bin-door,1/2 Gallon |
|
$ 87.02 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812202 | Magnet,freezer Drawer |
|
$ 72.30 | |||||
| 84 | 242190401 | Guide-mullion,magnet Cover ,flipper |
|
$ 16.70 | |||||
| 85 | 241778811 | Flipper Mullion Assembly,w/heater |
|
$ 267.20 | |||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 95 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 96 | 242048001 | Trim-door Air Filter,w/graphics |
|
$ 43.99 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 80.39 | |||||
| 209 | 242291001 | Housing,magnet ,white |
|
$ 20.48 | |||||
| 210 | 241779101 | Magnet,door |
|
Immediately | $ 31.19 | ||||
| 211 | 241979601 | Bumper,rubber ,white |
|
$ 22.68 | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 18.43 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 25.02 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| 49A | 241896003 | Bin-door,2-liter |
|
$ 112.04 | |||||
| 49B | 241906302 | Bin-door,dispenser |
|
$ 44.65 | |||||
| 49C | 241896103 | Bin-door,1/2 Gallon |
|
$ 97.67 | |||||
| 84A | 5303918644 | Cover-mullion,magnet Cover (Replaces: 242190501) |
|
$ 41.44 | |||||
| F2 | 241778315 | Gasket-refr Door,gray ,magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| FNI | 241788402 | Harness-wiring,flipper Mullion |
|
- | |||||
| FNI | 241926002 | Harness-wiring,door |
|
$ 47.99 | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 242068601 | Bumper,flipper Mullion |
|
$ 14.41 | |||||
| NI | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 240451503 | Screw (Replaces: 242064001) |
|
$ 3.79 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 |
