SELECT A DIAGRAM

02 - Control Panel


03 - Maintop


04 - Burner


05 - Body


06 - Oven Door, Lit/optional

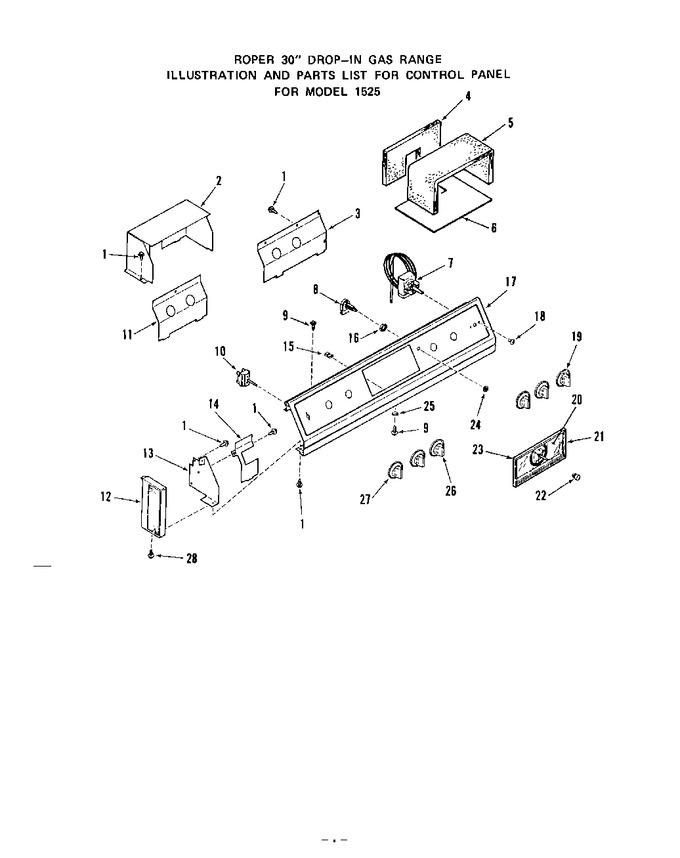

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
2	315032		Wire Cover - Control		Appelez-nous	-
3	315026		Wire Cover - Right		Appelez-nous	-
4	318078		Insulation - Control Cover Back		Appelez-nous	-
5	318079		Insulation - Control Cover Sides		Appelez-nous	-
6	318080		Shield - Oven Light		Appelez-nous	-
7	316842		Oven Thermostat		Appelez-nous	-
8	298793		Push Switch-oven Light		Appelez-nous	-
9	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
10	300121		Selector Switch (15250a, 15251a Models)		Appelez-nous	-
10	333353		Selector Switch (15252a, 15253a Models)		Appelez-nous	-
11	315028		Wire Cover - Left		Appelez-nous	-
12	315579		End Cap - Control Panel (right)		Appelez-nous	-
12	315578		End Cap - Control Panel (left)		Appelez-nous	-
13	315398		Mounting Bracket - End Cap (right)		Appelez-nous	-
13	315400		Mounting Bracket - End Cap (left)		Appelez-nous	-
14	315395		Wire Cover Extension		Appelez-nous	-
15	108069		Speed Nut 10 - 32		Appelez-nous	-
16	236129		Lock Nut		Appelez-nous	-
17	328823		Control Panel (15250a, 15251a Models)		Appelez-nous	-
17	328150		Control Panel (15252a, 15253a Models)		Appelez-nous	-
18	70655		Screw 8-32x1/4``		Appelez-nous	-
19	328826		Knob - Thermostat		Appelez-nous	-
20	284183		Clock Glass		Appelez-nous	-
21	333887		Clock W/4 Hr Timer (15252a, 15253a Models)		Appelez-nous	-
21	315261		Clock W/4 Hr Timer (15250a, 15251a Models)		Appelez-nous	-
22	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
23	285930		Clock Bezel				$ 67.10
24	87403		Knurled Nut		Appelez-nous	-
25	106462		Washer		Appelez-nous	-
26	328824		Knob - Gas Valve (4 Req)		Appelez-nous	-
27	328825		Knob - Selector Switch		Appelez-nous	-
28	327320		Screw 10-16x7/16``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
