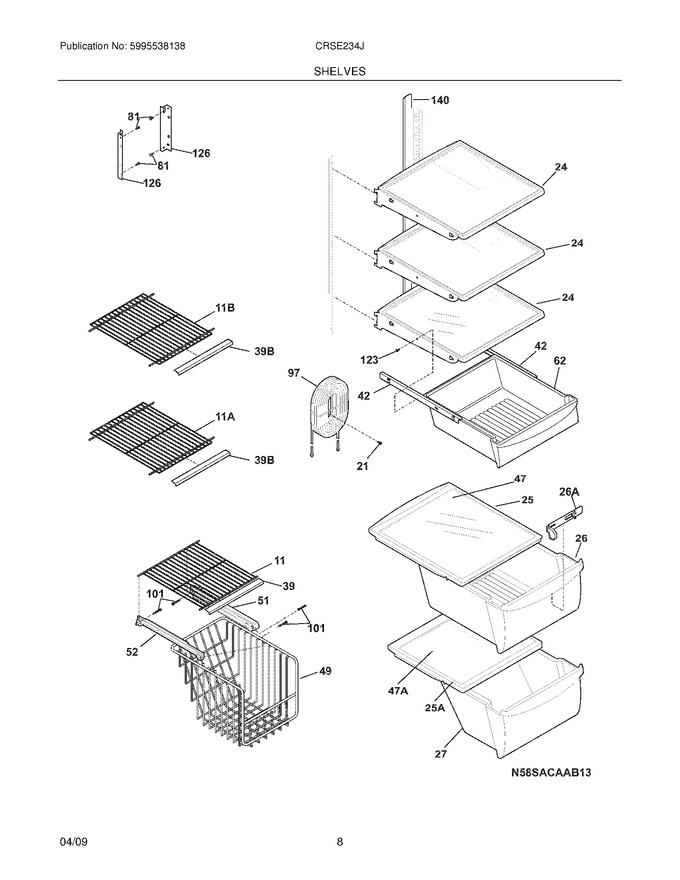

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657601		Shelf,flip Up ,wire				$ 79.48
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355211		Shelf-``spill-safe``,fixed				$ 224.07
25	240354502		Cover-crisper Pan,upper			Immediately	$ 100.02
26	240354723		Pan-crisper,upper   (Replaces: 240354705)			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354807)				$ 167.69
39	240430705		Trim-shelf,front				$ 60.43
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350613		Insert-pan Cover,glass   (Replaces: 240350635)				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	240355527		Pan-meat   (Replaces: 240355506)				$ 184.06
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	240545308		Water Tank				$ 114.11
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	5304532465		Shelf,fixed ,freezer   (Replaces: 241657501)				$ 54.10
11B	5304532464		Shelf,fixed Upper ,freezer   (Replaces: 241657503)		Appelez-nous	-
25A	240354602		Cover-crisper Pan,lower			Immediately	$ 88.46
26A	240351101		Control-humidity			Immediately	$ 43.95
39B	240430701		Trim-shelf,front				$ 69.30
47A	240350614		Insert-pan Cover,glass				$ 145.60
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	241868087		Energy Guide		Appelez-nous	-
