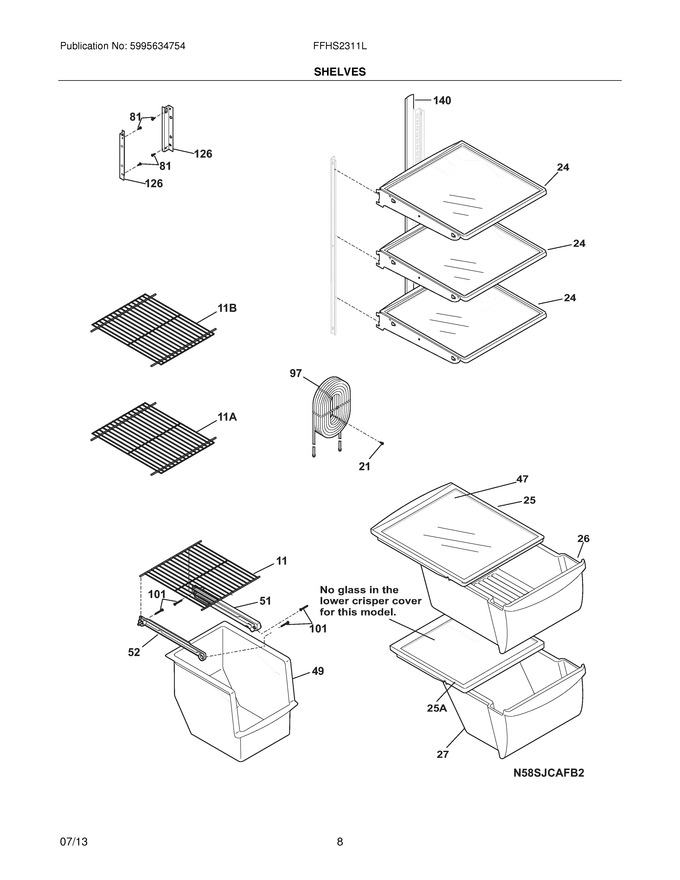

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657601		Shelf,flip Up ,wire				$ 79.48
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355277		Shelf-``spill-safe``,cantilever ,fixed				$ 213.87
25	240354502		Cover-crisper Pan,upper			Immediately	$ 100.02
26	240354723		Pan-crisper,upper   (Replaces: 240354706)			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354806)				$ 167.69
47	240350613		Insert-pan Cover,glass   (Replaces: 240350631)				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220506		Water Tank   (Replaces: 240545310)				$ 94.98
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	5304532465		Shelf,fixed ,freezer   (Replaces: 241657501)				$ 54.10
11B	5304532464		Shelf,fixed Upper ,freezer   (Replaces: 241657503)		Appelez-nous	-
25A	240354602		Cover-crisper Pan,lower			Immediately	$ 88.46
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 10.63
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	240349801		Clip-slide,pan				$ 20.48
NI	240362101		Clip-slide,cover				$ 47.03
NI	242028559		Energy Guide		Appelez-nous	-
