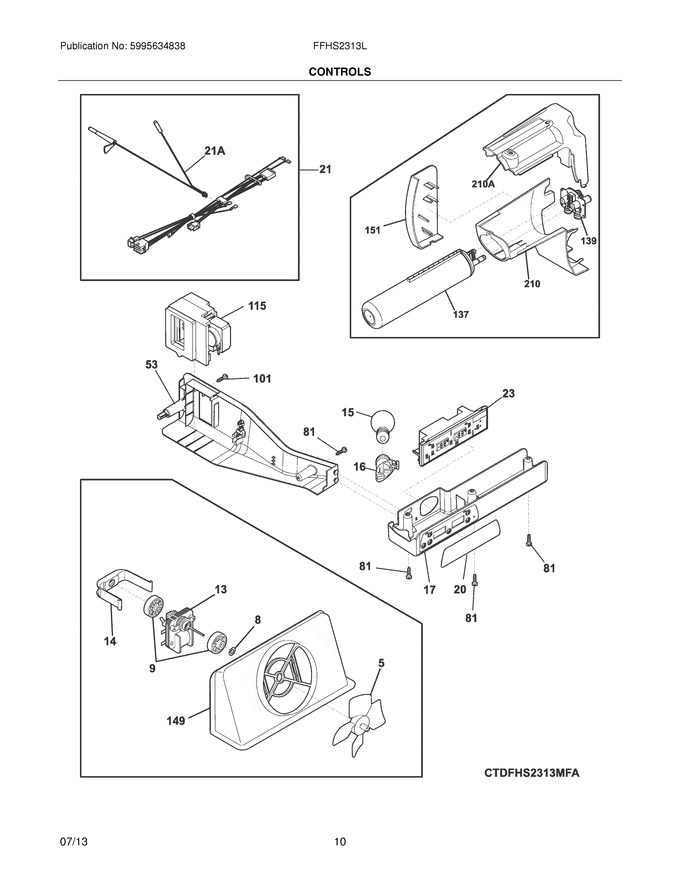

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 14 | 242135301 | Clip,evap Fan Motor ,evap Fan Motor |
|
$ 7.79 | |||||
| 17 | 241633512 | Box-control,front |
|
$ 101.35 | |||||
| 20 | 241604011 | Label-control Box |
|
$ 3.55 | |||||
| 53 | 241608902 | Box-control |
|
$ 103.14 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 101 | 241637202 | Screw,hex Sems Head ,8-18ab X 1-3/4 |
|
$ 5.31 | |||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 149 | 241563401 | Shroud-fan Orfice |
|
- | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 62.24 | |||||
| 210 | 241983814 | Housing-water Filtr |
|
$ 74.42 | |||||
| F115 | 242303001 | Damper Assy,w/seal |
|
Immediately | $ 126.56 | ||||
| F13 | 808602602 | Motor-evap Fan (Replaces: 241854601) |
|
$ 203.63 | |||||
| F137 | WF3CB | Filter-water,carbon (Replaces: 242069601) |
|
Immediately | $ 88.23 | ||||
| F149 | 241528305 | Seal,shroud |
|
- | |||||
| F15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| F16 | 218906802 | Socket-light/lamp |
|
$ 17.72 | |||||
| F21 | 5304521777 | Wiring Harness,assembly ,control Box ,w/thermistors (Replaces: 242303101) |
|
$ 104.05 | |||||
| F210 | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| F21A | 242278801 | ยท Thermistor Assembly,refrig/freezer ,w/connector |
|
Immediately | $ 86.47 | ||||
| F23 | 5304499060 | Control,electronic ,w/cover (Replaces: 242207702) |
|
$ 337.47 | |||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 31.36 |
