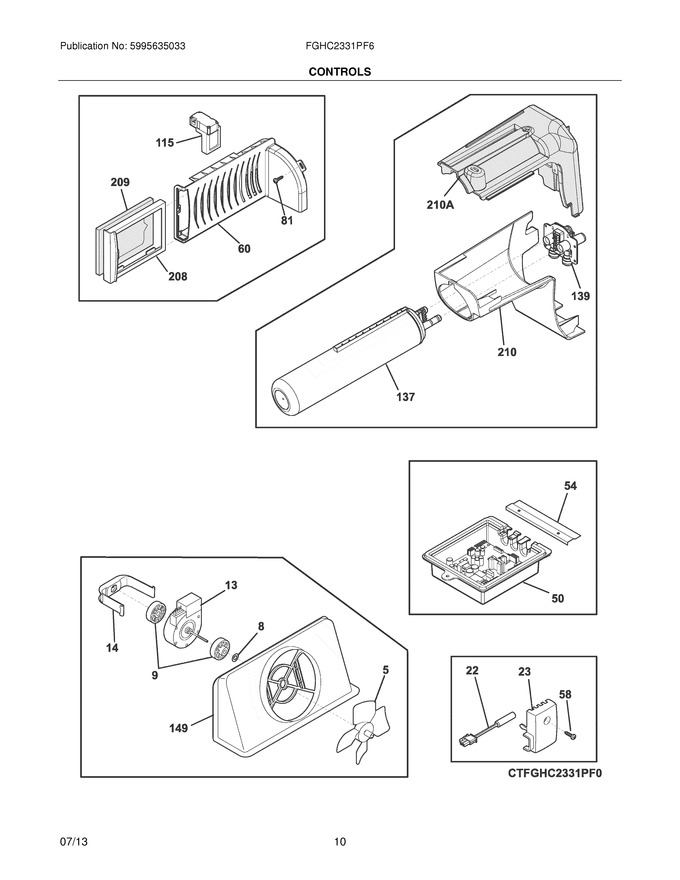

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing,motor Mounting |
|
$ 66.63 | |||||
| 14 | 242135301 | Clip,evap Fan Motor ,evap Fan Motor |
|
$ 7.79 | |||||
| 23 | 241845401 | Housing-sensor |
|
- | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 60 | 242014301 | Housing-diffuser & Air Filter |
|
$ 41.72 | |||||
| 115 | 241853801 | Damper Assy,w/seal |
|
$ 157.35 | |||||
| 137 | ULTRAWF | Filter-water,carbon (Replaces: 241791601) |
|
Immediately | $ 109.49 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 38.68 | |||||
| 208 | 241754301 | Sleeve,air Filter ,front |
|
$ 38.28 | |||||
| 209 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 210 | 241983813 | Housing-water Filtr |
|
$ 34.73 | |||||
| F13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| F149 | 241528304 | Seal,foam ,evap Fan Assy |
|
- | |||||
| F210 | 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| F210 | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| F22 | 240597220 | Sensor,temperature ,10k ,ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| F50 | 242115261 | Board-main Power,board & Housing |
|
- | |||||
| NI | 241500303 | Screw,hex Washer Head ,8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NI | 241852502 | Clip,retainer ,harness |
|
- | |||||
| NI | 241755501 | Insulation-air Duct |
|
$ 35.44 |
