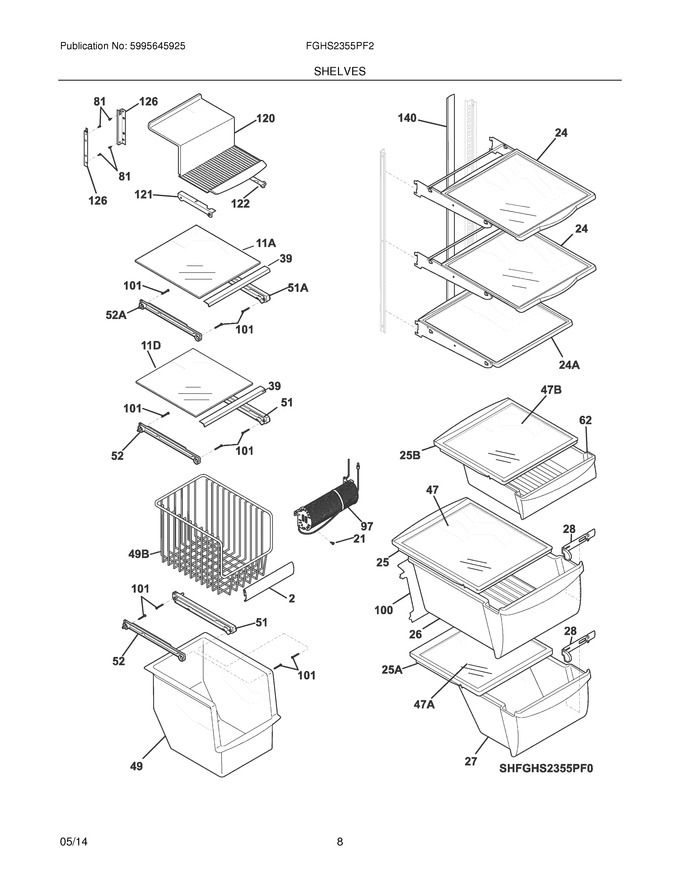

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510603		Trim-basket				$ 63.47
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355277		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350155)				$ 213.87
25	241974201		Cover-crisper Pan,upper				$ 94.98
26	240354723		Pan-crisper,upper			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354826)				$ 167.69
28	240351101		Control-humidity			Immediately	$ 43.95
39	240367606		Trim-shelf,front				$ 8.28
47	240350613		Insert-pan Cover,glass   (Replaces: 241992910)				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	241974401		Pan-meat			Immediately	$ 149.50
97	242220510		Water Tank   (Replaces: 241532007)				$ 119.78
100	240326303		Cover-water Tank				$ 61.28
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
101	241637202		Screw,hex Sems Head ,8-18ab X 1-3/4				$ 5.31
120	241691801		Shelf-ice Cream				$ 260.87
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241561101		Rail-ice Cream Shelf,rh				$ 78.87
126	241674402		Channel,auger Mtg ,rh				$ 43.24
126	241674401		Channel,auger Mtg ,lh				$ 47.48
140	241812502		Channel,wtr Tube Cover				$ 76.97
11A	241992913		Shelf-freezer,glass ,upper				$ 69.46
11D	241992914		Shelf-freezer,glass ,lower				$ 51.74
24A	240355277		Shelf-``spill-safe``,cantilever ,fixed				$ 213.87
25A	241974301		Cover-crisper Pan,lower				$ 88.46
25B	241973101		Cover-meat Pan			Immediately	$ 87.77
47A	240350614		Insert-pan Cover,glass				$ 145.60
47B	241992909		Insert-pan Cover,glass				$ 117.66
49B	240530503		Basket-sliding,upper ,full				$ 220.14
51A	240395502		Hanger-basket,rh				$ 73.00
52A	240395602		Hanger-basket,lh				$ 61.66
NI	241868101		Air Guide		Appelez-nous	-
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 10.63
NI	242146252		Label,energy Guide		Appelez-nous	-
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	241781601		Seal-return Air				$ 9.10
NI	240349801		Clip-slide,pan				$ 20.48
NI	240362101		Clip-slide,cover				$ 47.03
