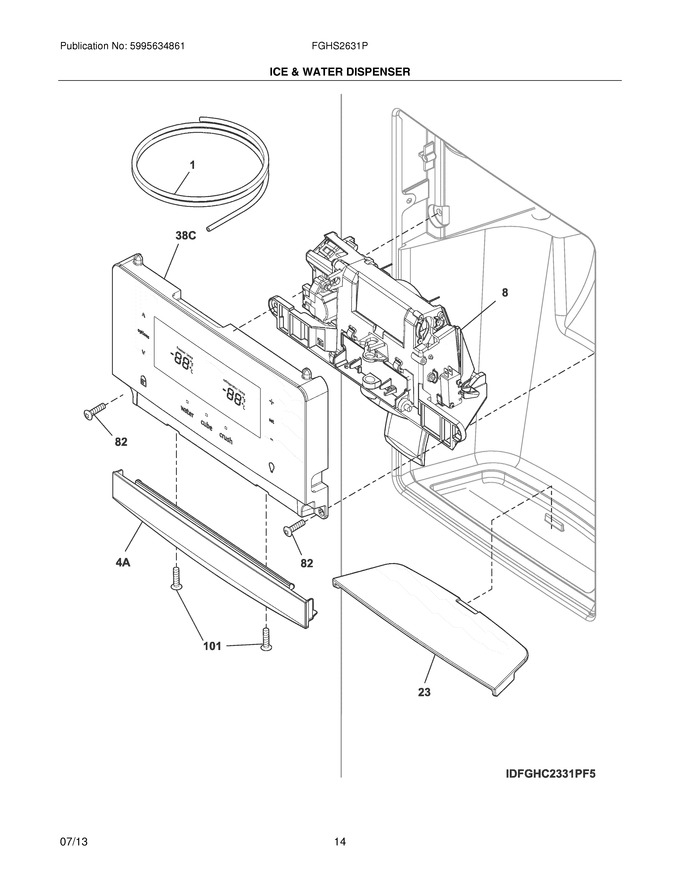

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube,water ,62`` ,natural ,door |
|
Immediately | $ 20.56 | ||||
| 23 | 242176503 | Sump,dispenser ,grey |
|
$ 114.11 | |||||
| 82 | 240363403 | Screw,8-18 X 0.500 ,2 |
|
- | |||||
| 101 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 4A | 242176404 | Trim,facade ,grey |
|
$ 65.25 | |||||
| F38C | 241953902 | Screw,no.8-18 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| F38C | 5304527931 | User Interface,assembly ,grey ,complete (Replaces: 242058232) |
|
$ 257.49 | |||||
| F8 | 242270107 | Module,dispenser ,clear ,w/paddle (Replaces: 242270101) |
|
$ 209.30 | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 241796407 | Tube-water Fill,extension |
|
$ 19.85 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker (Replaces: 240561703) |
|
Immediately | $ 20.56 | ||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NI | 218976429 | Tube-water Inlet,5/16 - 97.50`` ,brown/tan |
|
$ 40.40 | |||||
| NI | 218976419 | Tube-water Inlet,5/16 - 34`` ,yellow ,valve To Door |
|
$ 22.68 |
