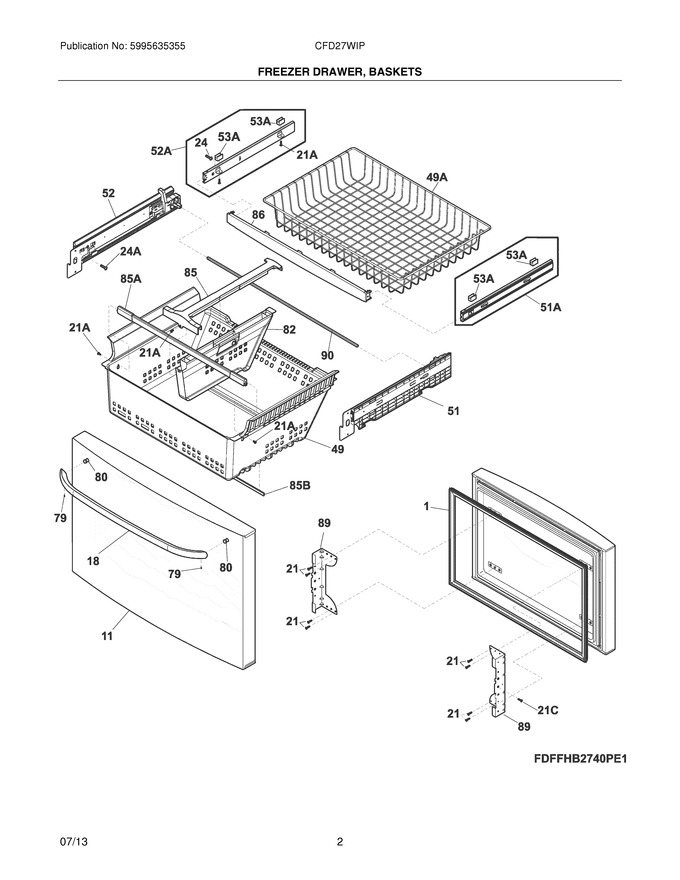

03 - Freezer Drawer, Baskets


05 - Fresh Food Doors


07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


18 - Wiring Diagram


19 - Wiring Diagram


20 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987934		Door-frzr,white ,complete Assy		Appelez-nous	-
18	242090502		Handle-door,white ,w/set Screws		Appelez-nous	-
21	241690602		Screw,quadrex ,no.10-16 Hilo			Immediately	$ 10.63
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242159401		Basket,freezer ,plastic ,lower		Appelez-nous	-
51	5303918690		Slide Assembly,basket Lower ,rh ,freezer Drawer   (Replaces: 242130514)				$ 271.18
52	242130513		Slide Assembly,basket Lower ,lh ,freezer Drawer		Appelez-nous	-
79	218755409		Screw-set		Appelez-nous	-
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
82	242168701		Divider,basket		Appelez-nous	-
85	242130901		Divider,basket ,lower				$ 91.76
86	242090701		Bar-stabilizer,freezer Drawer				$ 63.32
89	241972302		Bracket-freezer Drawer				$ 109.21
90	242136903		Bar-timing		Appelez-nous	-
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
24A	240383412		Screw,truss Hd Quad ,no.10-16 X .750 ,zinc				$ 11.44
49A	241780815		Basket-frzr,upper				$ 194.78
51A	241894223		Slide Assembly,basket ,rh ,freezer Drawer			Immediately	$ 132.53
52A	241894224		Slide Assembly,basket ,lh ,freezer Drawer				$ 131.83
53A	5303918801		Retainer-basket   (Replaces: 242216301)				$ 12.89
85A	242168501		Support-beam,divider ,lower Basket		Appelez-nous	-
85B	241872204		Support-beam,lower Basket		Appelez-nous	-
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
F51A	242039701		Screw,basket Slides				$ 13.46
NI	242039702		Screw,shoulder ,no.10-16 ,(2)				$ 4.26
NI	242011101		Pin-lock				$ 15.17
NI	241701902		Screwdriver,hex ,3/32`` ,ball Driver				$ 19.85
NI	5304497384		Plate,tapping   (Replaces: 242147601)				$ 15.60
NI	241601001		Wrench,allen		Appelez-nous	-
NI	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
NI	242015001		Screw,8-18 X 1/2			Immediately	$ 16.30
NI	242139201		Spring-compression,divider ,lower Basket				$ 19.72
NI	242146401		Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4)			Immediately	$ 14.27
