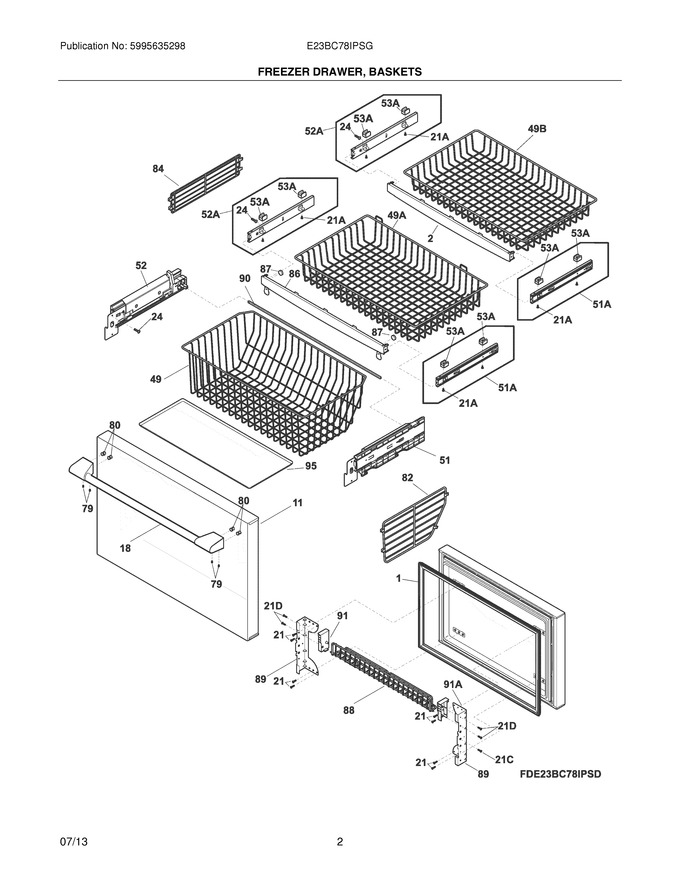

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304507340 | Trim,drawer ,stabilizer (Replaces: 241807605) |
|
Immediately | $ 45.55 | ||||
| 11 | 241987918 | Drawer,stainless ,freezer |
|
$ 525.63 | |||||
| 18 | 242052504 | Handle Assembly,stainless ,w/endcaps (Replaces: 241637928) |
|
$ 313.97 | |||||
| 21 | 241690602 | Screw,quadrex ,no.10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 240383412 | Screw,truss Hd Quad ,no.10-16 X .750 ,zinc |
|
$ 11.44 | |||||
| 49 | 242027002 | Basket-frzr,lower |
|
$ 215.04 | |||||
| 51 | 5303918696 | Slide Assembly,basket Lower ,rh ,freezer Drawer (Replaces: 242147110) |
|
$ 223.25 | |||||
| 52 | 5303918695 | Slide Assembly,basket Lower ,lh ,freezer Drawer (Replaces: 242147109) |
|
$ 230.35 | |||||
| 79 | 218755406 | Screw-set,10-32 X 0.375 |
|
- | |||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 242027102 | Divider,basket |
|
- | |||||
| 84 | 241780908 | Divider,basket ,upper |
|
$ 54.63 | |||||
| 86 | 241953202 | Bar,stabalizer ,freezer Drawer |
|
$ 165.14 | |||||
| 87 | 241812202 | Magnet,freezer Drawer |
|
$ 72.30 | |||||
| 88 | 241824009 | Rack-non Tilt-out,door (Replaces: 241824007) |
|
$ 411.79 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 242136901 | Bar-timing |
|
$ 35.45 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 17.44 | |||||
| 95 | 241770811 | Tray,spill Guard |
|
$ 109.36 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 21C | 242146401 | Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4) |
|
Immediately | $ 14.27 | ||||
| 21D | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 49A | 241780823 | Basket-frzr,upper |
|
$ 172.88 | |||||
| 49B | 241831304 | Basket-frzr,ceiling ,up Upper |
|
$ 194.72 | |||||
| 51A | 241894221 | Slide Assembly,basket ,rh ,freezer Drawer |
|
$ 133.25 | |||||
| 52A | 241894222 | Slide Assembly,basket ,lh ,freezer Drawer |
|
$ 133.96 | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| 91A | 241824101 | Cap,door Rack ,white |
|
$ 17.44 | |||||
| F1 | 5304537408 | Gasket-frzr Drawer,white ,magnetic (Replaces: 241778302) |
|
Immediately | $ 86.28 | ||||
| NI | 5304497384 | Plate,tapping (Replaces: 242147601) |
|
$ 15.60 | |||||
| NI | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NI | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 242039701 | Screw,basket Slides |
|
$ 13.46 | |||||
| NI | 241601001 | Wrench,allen |
|
- | |||||
| NI | 241979601 | Bumper,rubber ,white |
|
$ 22.68 | |||||
| NI | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc |
|
$ 15.92 |
