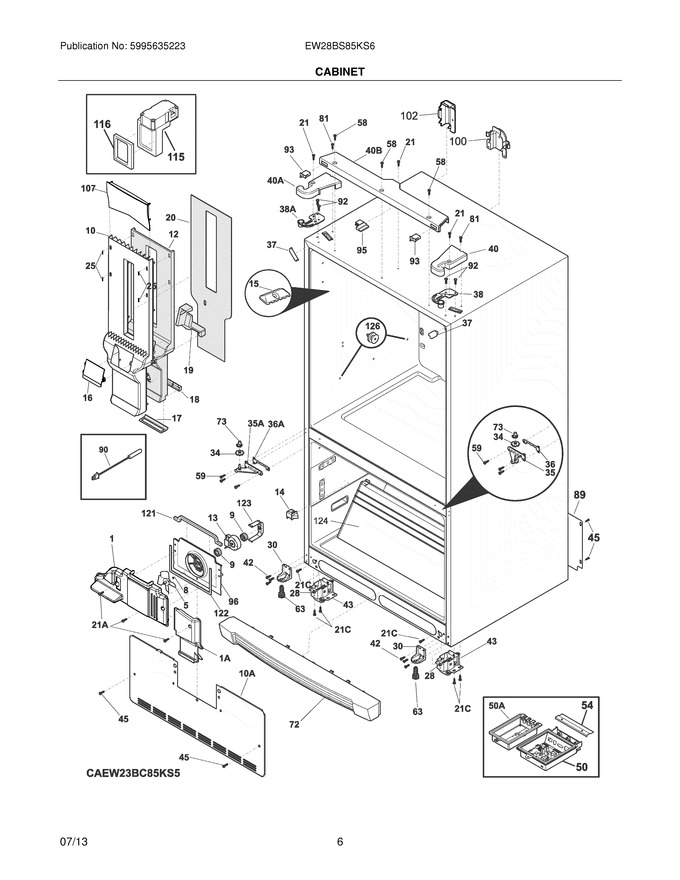

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304503130 | Cover-fan (Replaces: 242099402) |
|
$ 72.05 | |||||
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing,motor Mounting |
|
$ 66.63 | |||||
| 10 | 242058504 | Cover-air Duct |
|
$ 170.73 | |||||
| 12 | 242073901 | Foam-air Supply |
|
$ 66.31 | |||||
| 16 | 242164401 | Cover-damper |
|
$ 21.16 | |||||
| 17 | 241928201 | Gasket-air Duct |
|
$ 17.72 | |||||
| 18 | 241928101 | Duct-air |
|
$ 8.23 | |||||
| 19 | 241871901 | Support-eps Damper |
|
$ 18.43 | |||||
| 20 | 241922902 | Cover-air Duct,rear |
|
$ 0.07 | |||||
| 21 | 241732101 | Screw,10-32 X 1/2 |
|
Immediately | $ 15.60 | ||||
| 25 | 241949502 | Clip,air Vent |
|
$ 20.48 | |||||
| 28 | 5304499445 | Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces: 240335502) |
|
Immediately | $ 31.33 | ||||
| 30 | 241778701 | Bracket-anti Tip |
|
$ 26.54 | |||||
| 34 | 241868301 | Washer,hinge ,nylon ,(2) |
|
$ 31.19 | |||||
| 35 | 241763005 | Hinge-lower,zinc ,rh |
|
- | |||||
| 36 | 241868201 | Spacer,door ,lower Rh |
|
$ 49.62 | |||||
| 37 | 242161206 | Trim-cabinet Corner,gray ,(2) (Replaces: 240337616) |
|
$ 10.62 | |||||
| 38 | 241761301 | Bracket-upper Hinge,rh |
|
$ 66.25 | |||||
| 40 | 5304504483 | Cover-upper Hinge,grey ,rh (Replaces: 241778009) |
|
$ 64.58 | |||||
| 42 | 240578902 | Screw,hex Head ,1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy,front ,(2) (Replaces: 240335006) |
|
Immediately | $ 31.33 | ||||
| 45 | 241500303 | Screw,hex Washer Head ,8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 241500305 | Screw (Replaces: 241853202) |
|
$ 3.03 | |||||
| 59 | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 241930301 | Grille/kickplate |
|
$ 301.93 | |||||
| 73 | 242075701 | Cam-lower Hinge |
|
$ 22.75 | |||||
| 81 | 134154100 | Screw,hex Head ,no.10-32 X 3/8 (Replaces: 242025601) |
|
$ 13.46 | |||||
| 89 | 5304520905 | Cover-access,w/label (Replaces: 241733902) |
|
Immediately | $ 74.03 | ||||
| 90 | 240597220 | Sensor,temperature ,10k ,ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 92 | 241710601 | Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg |
|
$ 13.46 | |||||
| 95 | 241530501 | Sensor,humidity |
|
$ 121.19 | |||||
| 96 | 241860601 | Shroud-evap Fan Mtg |
|
Immediately | $ 131.83 | ||||
| 100 | 242157601 | Cover,tubing ,eps Block |
|
$ 11.92 | |||||
| 102 | 242157501 | Cover,tubing ,eps Block |
|
$ 23.82 | |||||
| 107 | 241963101 | Duct-air,top |
|
$ 41.16 | |||||
| 115 | 5303918899 | Damper,motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper,foam |
|
$ 9.22 | |||||
| 121 | 241860103 | Gasket-evap,upper |
|
Immediately | $ 3.73 | ||||
| 122 | 241860117 | Gasket-evap,bottom (Replaces: 241860102) |
|
Immediately | $ 11.21 | ||||
| 123 | 242135301 | Clip,evap Fan Motor ,evap Fan Motor |
|
$ 7.79 | |||||
| 124 | 242006903 | Duct-air,freezer (Replaces: 242006902) |
|
Immediately | $ 63.70 | ||||
| 126 | 242081301 | Screw-shoulder |
|
- | |||||
| 10A | 241860402 | Cover-evap Coil,lower |
|
Immediately | $ 130.91 | ||||
| 1A | 242159201 | Cover,fan |
|
- | |||||
| 21A | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 35A | 241763006 | Hinge-lower,zinc ,lh |
|
- | |||||
| 36A | 241868202 | Spacer,door ,lower Lh |
|
$ 23.51 | |||||
| 38A | 241761302 | Bracket-upper Hinge,lh |
|
$ 64.49 | |||||
| 40A | 5304504482 | Cover-upper Hinge,grey ,lh (Replaces: 241778010) |
|
$ 65.08 | |||||
| 40B | 241862405 | Cover-upper Hinge,grey ,center |
|
$ 101.65 | |||||
| F10A | 241860105 | Gasket-coil Cover |
|
Immediately | $ 17.87 | ||||
| F10A | 241860104 | Gasket-coil Cover |
|
Immediately | $ 29.77 | ||||
| F10A | 242193602 | Plug-hole,icemaker (Replaces: 241557601) |
|
$ 14.41 | |||||
| F13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| F14 | 242060202 | Switch-light/lamp,frzr Door |
|
$ 40.40 | |||||
| F15 | 241891104 | Light-led |
|
- | |||||
| F40B | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| F50 | 242115276 | Board-main Power,w/housing (Replaces: 242115236) |
|
$ 302.59 | |||||
| F50A | 241891603 | Board-led Power . |
|
- | |||||
| F50A | 241852501 | Clip,wiring Harness |
|
$ 15.60 | |||||
| F93 | 241835505 | Switch-light,grey |
|
Immediately | $ 70.16 | ||||
| FNI | 242119001 | Harness-wiring |
|
$ 122.09 | |||||
| FNI | 242015901 | Harness-hinge Jumper,hinge Jumper |
|
$ 146.71 | |||||
| FNI | 242045503 | Harness-wiring |
|
$ 40.40 | |||||
| NI | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| NI | 241842301 | Cap-thermistor |
|
Immediately | $ 34.02 | ||||
| NI | 242004802 | Foam-strip |
|
$ 5.67 | |||||
| NI | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| NI | 241810104 | Seal,housing |
|
$ 12.13 | |||||
| NI | 241953904 | Screw,no.8-18 |
|
$ 10.63 | |||||
| NI | 241859801 | Cover-eps,damper |
|
$ 8.93 | |||||
| NI | 241860112 | Gasket-evap,upper |
|
$ 7.09 | |||||
| NI | 241860111 | Gasket-evap,bottom |
|
$ 12.05 | |||||
| NI | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) |
|
$ 12.05 | |||||
| NI | 241695904 | Screw |
|
$ 14.41 | |||||
| NI | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 241969001 | Cap,screw |
|
$ 16.69 |
