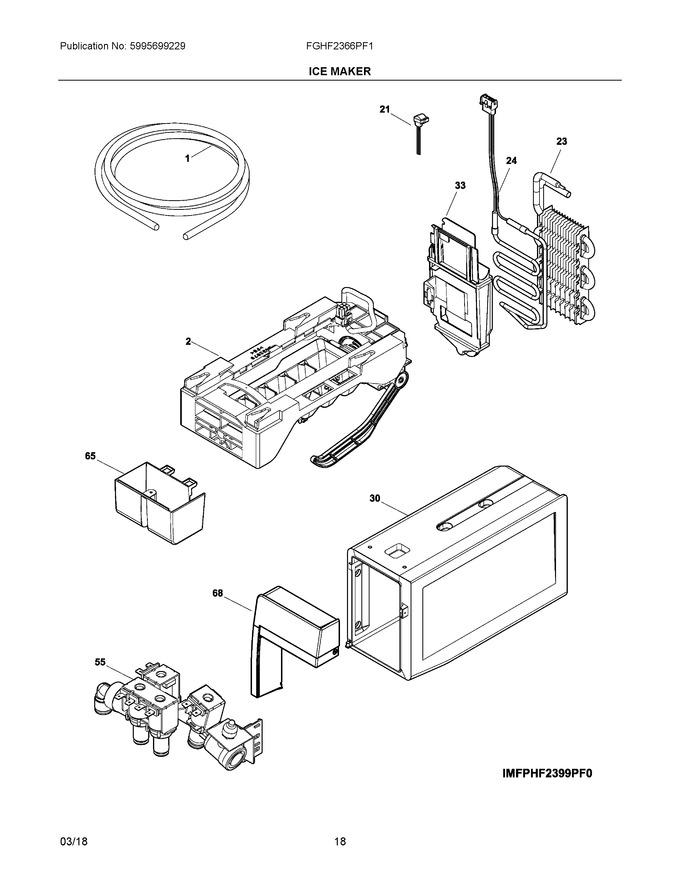

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet, 5/16 - 59", Yellow, Cd |
|
$ 20.56 | |||||
| 2 | 243297613 | Ice Maker, Complete, 115 V (Replaces: 243297603) |
|
Immediately | $ 117.66 | ||||
| 21 | 5303918568 | Thermostat-defrost, Defrost, Icemaker Evap |
|
$ 91.43 | |||||
| 23 | 242094603 | Evaporator, Ice Maker |
|
$ 138.07 | |||||
| 24 | 242094802 | Heater-defrost |
|
Immediately | $ 113.92 | ||||
| 30 | 242093501 | Cover, Icmkr & Bucket (Replaces: 242142202) |
|
$ 168.69 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 65 | 242145902 | Cover-wiring |
|
- | |||||
| 68 | 242095002 | Cover, -front, Bucket Trim |
|
$ 94.82 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NIA | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 19.13 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 242095402 | Gasket-evap Housing, .250x.250x3.300 |
|
- | |||||
| NIA | 241953902 | Screw, #8 - 18 X .380, 3 |
|
Immediately | $ 17.11 | ||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 164.24 | |||||
| NIB | 5303918784 | Gasket, .4x .75x 16.00 (Replaces: 242124801) |
|
Immediately | $ 122.75 | ||||
| NIB | 242095403 | Gasket-evap Housing, .250x.250x7.750 |
|
- | |||||
| NIB | 241920106 | Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 242096001 | Insulation, I/container Frt |
|
$ 19.72 | |||||
| NIC | 5303918784 | Gasket, .9x .75x 10.75 (Replaces: 242124802) |
|
Immediately | $ 122.75 | ||||
| NIC | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| NIC | 241964707 | Tube-water, 1/4 - 36", Green |
|
Immediately | $ 18.43 | ||||
| NID | 242095405 | Gasket-evap Housing, .250x.250x6.600 |
|
- | |||||
| NID | 241965906 | Tube-water, 5/16 - 67", Natural |
|
Immediately | $ 24.10 | ||||
| NID | 5303918784 | Gasket, Housing Funnel, 2.69x 3.05x .25, Top, W/hole (Replaces: 242146001) |
|
Immediately | $ 122.75 | ||||
| NIE | 242095408 | Gasket-evap Housing, .250x1.00x6.600 |
|
- | |||||
| NIE | 242220204 | Tube-water, 5/16 - 93.5", Brown (Replaces: 242082105) |
|
Immediately | $ 40.32 | ||||
| NIF | 242220204 | Tube-water, 5/16 - 69.5", Natural (Replaces: 242082106) |
|
Immediately | $ 40.32 | ||||
| NIG | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- |
