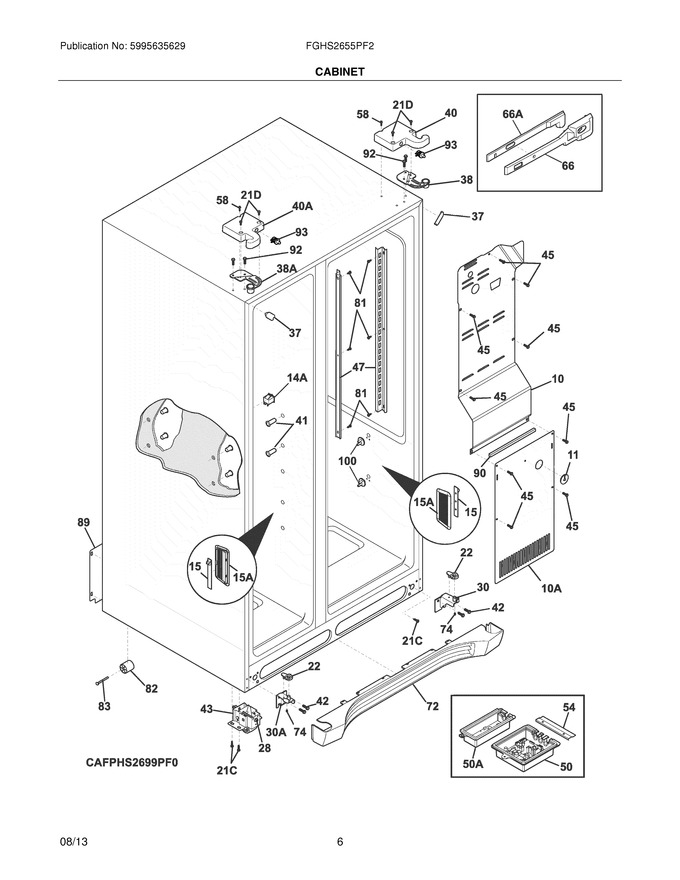

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435914		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
22	241917801		Plate-door Closer				$ 7.09
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241918001		Bracket-lower Hinge,w/hinge Pin ,rh ,and Screw				$ 65.92
37	242161206		Trim-cabinet Corner,gray ,(2)				$ 10.62
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	241946709		Cover-upper Hinge,gray ,rh				$ 66.01
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 4.55
47	241513001		Channel-shelf Mtg,side ,(2)				$ 112.24
54	241532401		Channel				$ 30.47
58	241548003		Screw,10-32 X 3/8				$ 3.03
66	241756801		Damper-meat Keeper				$ 28.05
72	241969405		Grille/kickplate				$ 77.97
74	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	5304520905		Cover-access,w/label   (Replaces: 241733902)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
100	241993101		Support-crisper Cvr			Immediately	$ 5.62
10A	241719711		Cover-evap Coil,lower				$ 105.80
15A	242202701		Lens,3 Led Cluster				$ 30.47
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
21D	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
30A	241918004		Bracket-lower Hinge,w/hinge Pin ,lh ,and Screw				$ 52.45
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	241946710		Cover-upper Hinge,gray ,lh			Immediately	$ 64.64
66A	241756901		Housing-damper				$ 32.62
F100	241993001		Support-crisper Cvr			Immediately	$ 19.23
F14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
F15	242196204		Light Board,3 Led Cluster   (Replaces: 242196201)			Immediately	$ 66.02
F40A	241891901		Harness-wiring,freezer		Appelez-nous	-
F50	242115254		Board-main Power,board & Housing				$ 217.78
F50A	241891610		Power Board,led				$ 253.03
F50A	242285301		Clip,retainer ,harness		Appelez-nous	-
F93	241911710		Switch-light,grey ,(2)   (Replaces: 241911705)				$ 10.62
NI	241890601		Louver,air Supply ,crisper				$ 15.60
NI	241835801		Harness-wiring,refrigerator				$ 18.20
NI	241852502		Clip,retainer ,harness		Appelez-nous	-
NI	242036802		Clip,plastic		Appelez-nous	-
NI	241781601		Seal-return Air				$ 9.10
NI	241868101		Air Guide		Appelez-nous	-
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
