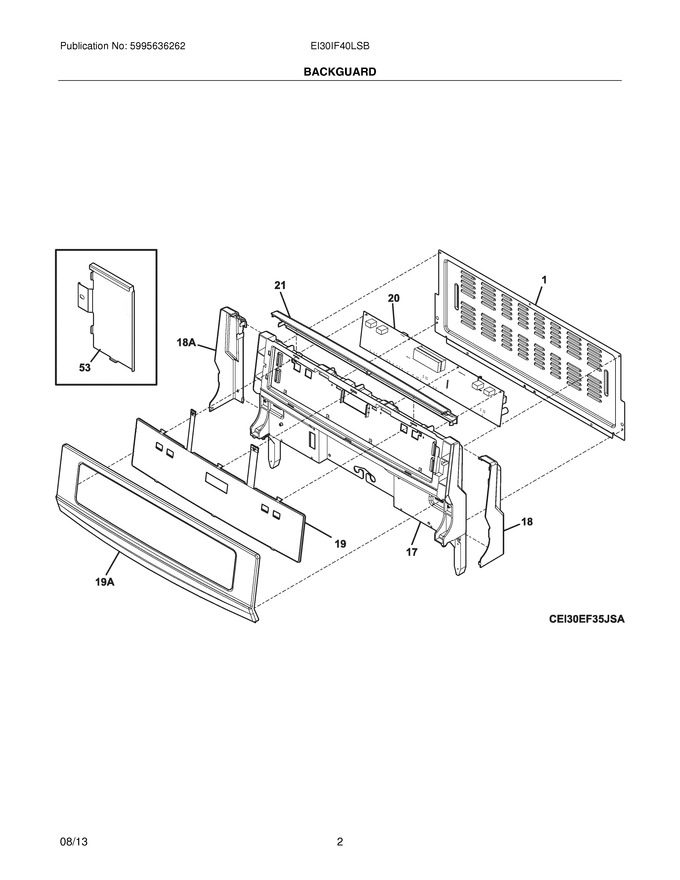

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316380500		Shield,backguard ,rear Wall		Appelez-nous	-
17	316380400		Support,backguard ,black				$ 292.79
18	316381004		Channel,support ,black ,rh ,backguard				$ 64.84
21	316381401		Cap,backguard ,black ,top				$ 118.02
53	316355000		Shield,flue ,inner		Appelez-nous	-
18A	316381001		Channel,support ,black ,lh ,backguard				$ 83.27
19A	316381602		Overlay,backguard ,stainless				$ 296.36
F19	316380112		Membrane Assembly,touch ,black ,w/mtg Channel				$ 748.44
F20	316380086		Controller,electronic ,es1040   (Replaces: 316380085)				$ 592.63
FNI	807233201		Harness,wiring ,aux ,es1040		Appelez-nous	-
FNI	316580513		Harness,wiring ,jumper		Appelez-nous	-
NI	316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)				$ 12.02
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
