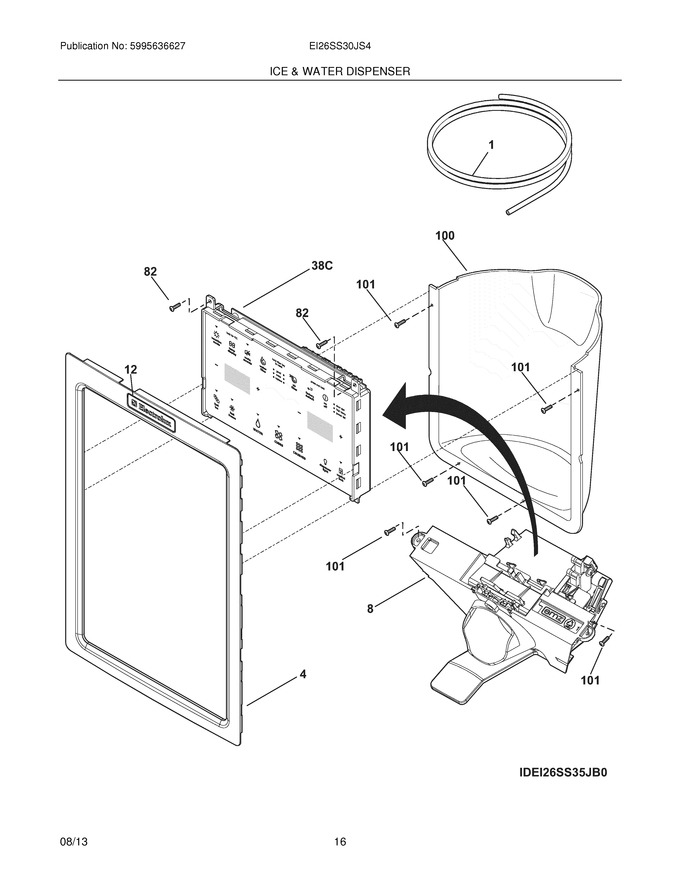

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	241893101		Cover-module,stainless-look   (Replaces: 241757501)				$ 70.75
8	242100018		Module-dispenser   (Replaces: 242100001)			Immediately	$ 255.15
12	241873301		Nameplate,electrolux ,stainless				$ 11.15
82	240363403		Screw,8-18 X 0.500 ,2		Appelez-nous	-
100	241753301		Liner-sump,light Gray				$ 206.25
101	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
F1	218976409		Tube,water ,60`` ,natural ,door			Immediately	$ 60.25
F38C	242102805		Board-control,assembly				$ 412.23
FNI	241834702		Harness-wiring,door		Appelez-nous	-
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561703)			Immediately	$ 20.56
NI	218976419		Tube-water Inlet,5/16 - 34`` ,yellow ,valve To Door				$ 22.68
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	218976420		Tube-water Inlet,inlet Valve ,to Filter				$ 44.65
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
