SELECT A DIAGRAM

01 - Cover


03 - Oven,cabinet

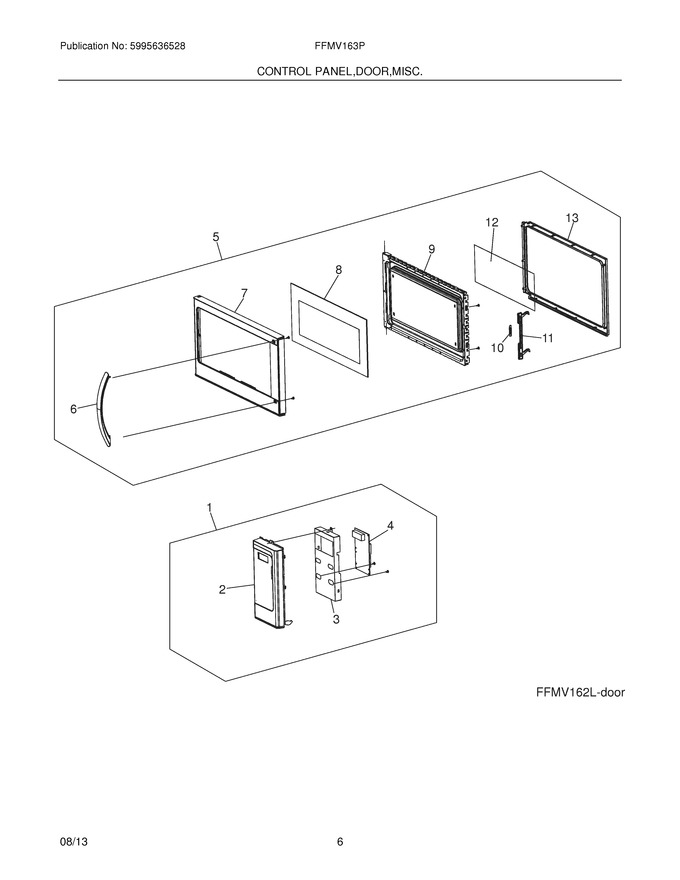

05 - Control Panel,door,miscellaneous


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304477374		Frame,control Panel ,white				$ 237.86
3	5304464065		Panel,control Mount ,bracket				$ 68.04
5	5304477384		Door Assembly,white				$ 431.63
6	5304492615		Handle Assembly,door ,white		Appelez-nous	-
7	5304477395		Panel,outer Door ,white				$ 265.32
8	5304464134		Panel,glass ,white ,outer Door		Appelez-nous	-
9	5304472459		Panel,inner Door ,white				$ 293.53
10	5304521953		Spring,door Latch   (Replaces: 5304464069)				$ 7.23
12	5304509640		Choke Cover,inner Door   (Replaces: 5304464071)				$ 50.61
13	5304474405		Seal,door ,mylar Film				$ 18.44
F1	5304477379		Control Assembly,white		Appelez-nous	-
F11	4056021605		Latch,door   (Replaces: 5304477389)			Immediately	$ 3.69
F4	5304477390		Control Board,printed Circuit			Immediately	$ 309.73

    View Diagram in Separate Window       Print Part List
