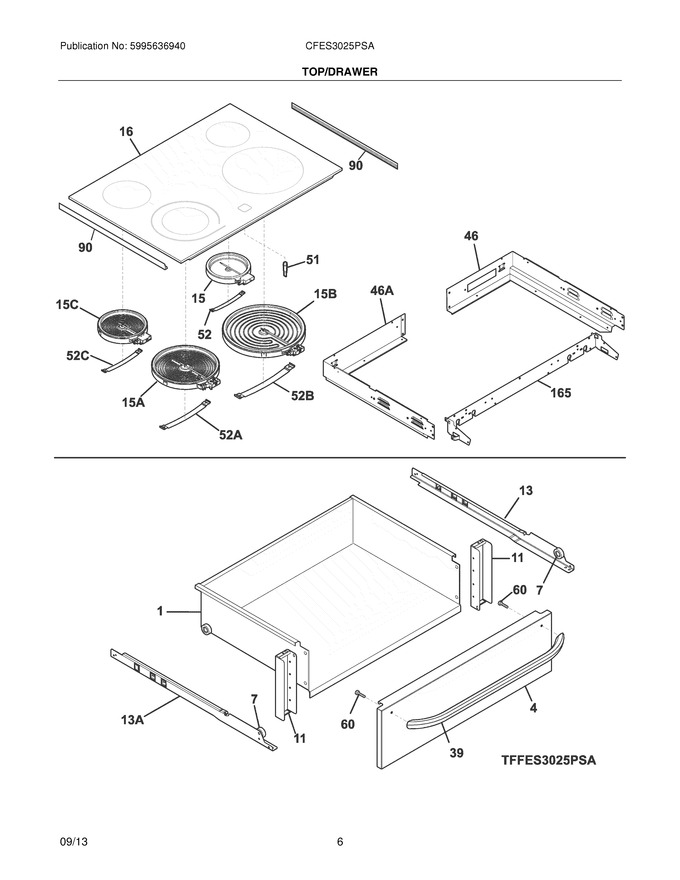

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505701 | Drawer (Replaces: 318107105) |
|
Immediately | $ 143.39 | ||||
| 4 | 318298812 | Panel,drawer ,stainless ,front |
|
$ 364.09 | |||||
| 7 | 318332200 | Roller,nylon |
|
- | |||||
| 11 | 318298600 | Bracket,drawer Support ,(2) |
|
$ 62.69 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 16 | 139033804 | Smoothtop Assembly,glass ,black |
|
$ 206.80 | |||||
| 39 | 316558201 | Handle,door ,stainless (Replaces: 316558200) |
|
$ 174.23 | |||||
| 46 | 318568200 | Box,burner ,rh |
|
$ 23.99 | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 90 | 318368001 | Channel,glass Protector ,(2) |
|
$ 22.98 | |||||
| 165 | 318227520 | Plate,mounting |
|
$ 47.99 | |||||
| 13A | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 46A | 318568201 | Box,burner ,lh |
|
$ 28.93 | |||||
| 52A | 318122010 | Spring,element Mtg ,3000w |
|
$ 62.51 | |||||
| 52B | 318122011 | Spring,element Mtg ,1200w/1800w |
|
$ 62.14 | |||||
| 52C | 318122004 | Spring-element Mtg,700w & 2100w |
|
$ 55.76 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200 ,(2) ,radiant |
|
Immediately | $ 122.86 | ||||
| F15A | 5304533520 | Element,dual ,9``/6`` ,surface ,3000w ,quick Boil (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| F15B | 316291200 | Element,surface ,12`` ,2700w |
|
Immediately | $ 235.31 | ||||
| F15C | 318198851 | Element,surface ,7`` ,1500w |
|
$ 188.07 | |||||
| F51 | 318044831 | Light,indicator ,natural ,(4) |
|
$ 16.69 | |||||
| FNI | 318231876 | Harness,wiring ,pilot Light |
|
$ 31.90 | |||||
| FNI | 318532147 | Ground Wire,w/terminal |
|
- | |||||
| FNI | 5304520768 | Harness,wiring ,surface Units (Replaces: 808608901) |
|
$ 122.86 | |||||
| NI | 318531701 | Spacer,(2) |
|
$ 12.05 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 318591200 | Washer,handle ,drawer |
|
- | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
