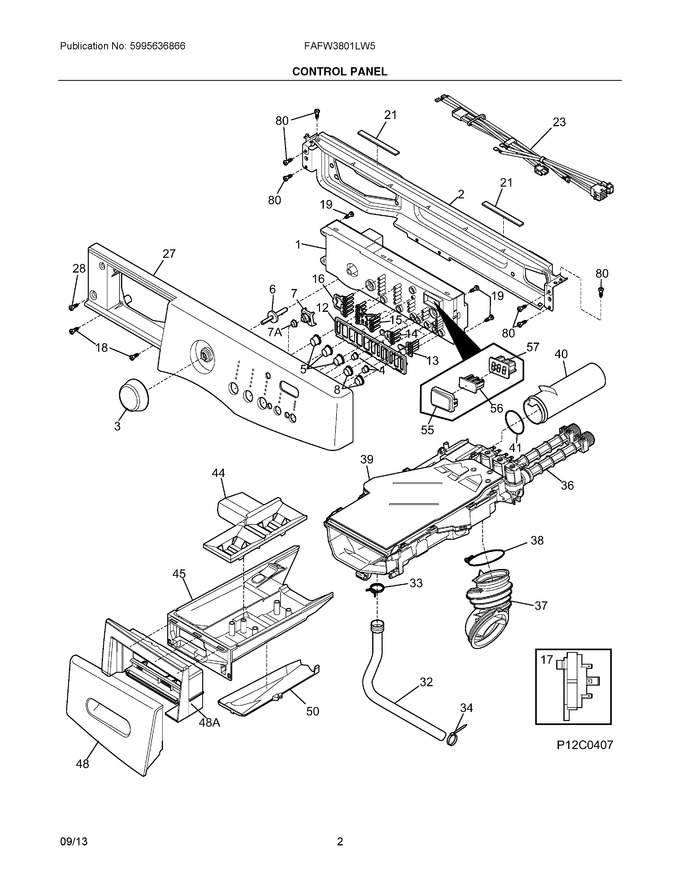

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137006085		Control Board, Printed Circuit, With Housing			Immediately	$ 309.02
2	134887400		Bracket, Control Panel, Mounting				$ 92.61
3	137314610		Knob, Control, White				$ 48.67
4	137320810		Push Button, Round #1				$ 22.16
5	137314710		Push Button, Round #3				$ 23.57
6	134347700		Pin, Program Knob				$ 19.74
7	137320910		Push Button, Round, #2				$ 28.98
8	137314810		Push Button, Round #4				$ 23.05
12	137320500		Spring, Push Buttons				$ 30.29
13	134557500		Light Pipe, Start Group				$ 5.67
14	134557400		Light Pipe, Row Of 3				$ 6.67
15	134552800		Light Pipe, 5 X 4				$ 18.43
16	134600000		Light Pipe, Row Of 5				$ 18.43
17	134762000		Switch, Pressure			Immediately	$ 111.28
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
21	134407900		Dampener, Vibration				$ 17.01
23	137585600		Wire Harness, Main				$ 124.90
27	137341810		Panel, Control Console				$ 160.91
28	131205300		Screw, 10-16 X 0.750			Immediately	$ 12.10
32	134586500		Hose, Disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
36	134371220		Valve, Dispenser, Ntc/short Tube			Immediately	$ 65.71
37	134372300		Hose, Disp-to-tub				$ 58.32
38	134372400		Clamp, Tub Hose				$ 64.49
39	134409320		Housing, Dispenser, W/valve, Cover   (Replaces: 134446120)			Immediately	$ 366.58
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 13.74
44	134370200		Cover, Dispenser			Immediately	$ 41.11
45	134370000		Drawer, Dispenser			Immediately	$ 74.11
48	137314410		Handle/drawer				$ 134.56
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 366.58
55	137320700		Window, Digit Display				$ 32.03
56	134557300		Light Pipe, Digital Display				$ 19.06
57	134503300		Display, Digital				$ 52.24
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
23C	137104600		Wire Harness, Main				$ 142.99
23D	137214900		Wire Harness, Main		Appelez-nous	-
48A	137314510		Frame, Drawer Handle			Immediately	$ 86.08
80A	131168200		Screw, 10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
NIA	134436600		Wiring Harness, Controls				$ 212.63
NIA	134178901		Screw, Quadrex Ph, 8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIB	134547600		Wiring Harness, Motor Control				$ 70.09
NIB	134178901		Screw, 8-18ab X 0.455				$ 14.89
