SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door

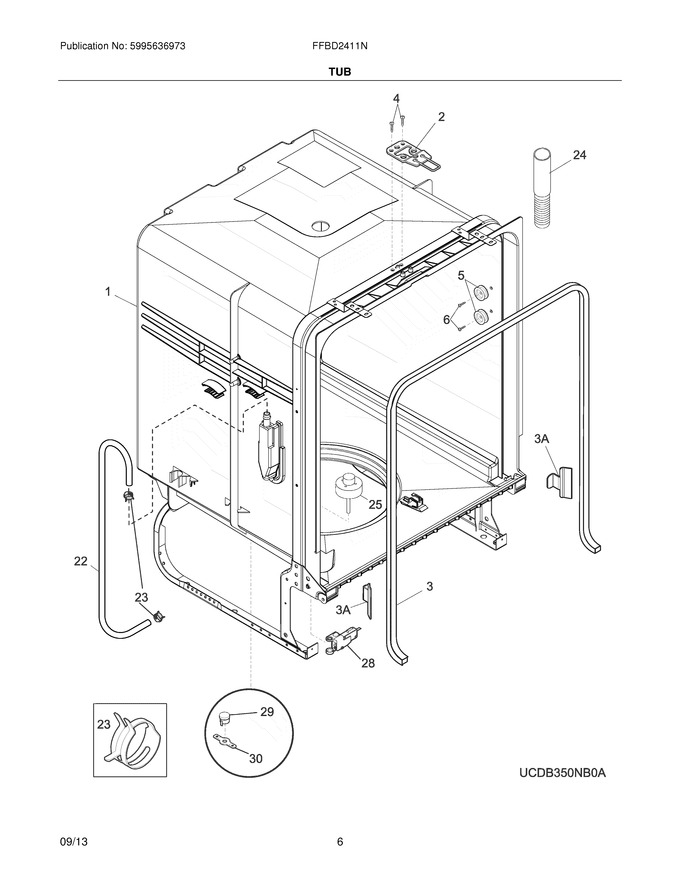

07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154662601		Strike,door			Immediately	$ 39.69
3	8581548276014		Gasket,tub .   (Replaces: 154845301)			Immediately	$ 26.30
4	808326801		Screw,hex Hd ,8-18 X .4 ,w/washer   (Replaces: 154825401)				$ 2.84
5	5304506916		Roller Assembly,tub ,(8) ,w/screw-washer   (Replaces: 154767502)			Immediately	$ 33.00
6	5303943103		Screw W/washer,(8)			Immediately	$ 17.72
22	5304523457		Tubing,water Inlet   (Replaces: 154446002)			Immediately	$ 14.03
23	5304538466		Clamp-tubing,(2)   (Replaces: 5303318539)				$ 2.31
30	154241101		Retainer,thermostat				$ 3.62
3A	154701001		Shield,tub Splash ,corner ,(2)   (Replaces: 154685101)			Immediately	$ 17.00
F1	154729401		Tub Assy,w/frame Parts ,white ,df				$ 323.72
F24	807117001		Hose,drain   (Replaces: 154753201)			Immediately	$ 36.14
F25	5304532207		Float   (Replaces: 154767801)			Immediately	$ 6.89
F28	154773201		Switch Assy,float			Immediately	$ 55.29
F29	5304525221		Thermostat,hi Limit   (Replaces: 154642901)			Immediately	$ 31.17
NI	5300807270		Screw,(2) ,countertop Mtg.				$ 6.72
NI	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)				$ 73.71
NI	154297701		Screw,retainer-thermo				$ 13.46
NI	154406801		Bracket Kit,countertop Mtg ,w/scrws & Instr				$ 105.61
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	5304525043		Insulation,blanket   (Replaces: 154858701)			Immediately	$ 45.55
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
