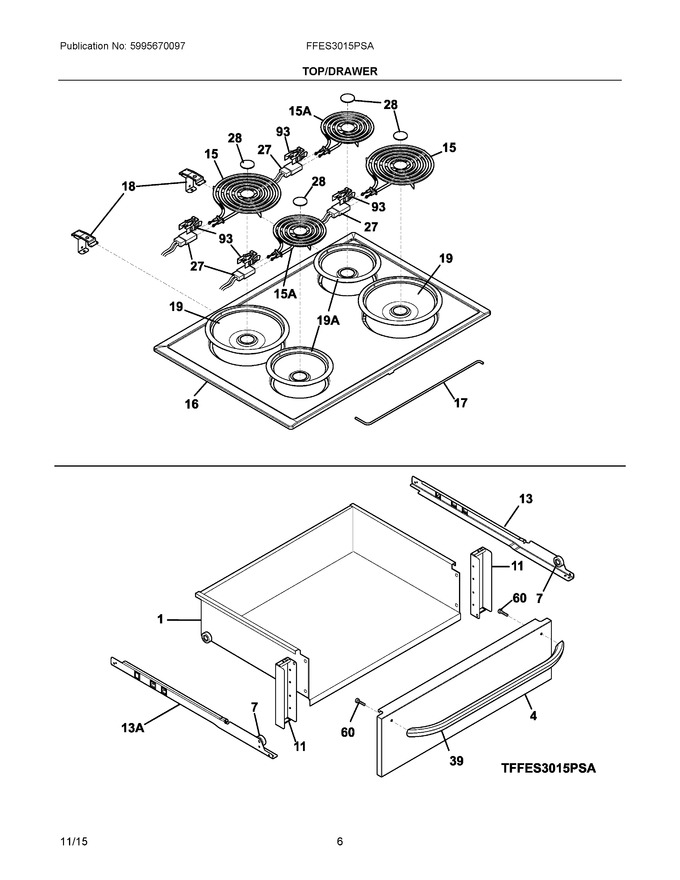

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298812		Panel, Drawer, Stainless, Front				$ 364.09
7	318332200		Roller, Nylon		Appelez-nous	-
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318018100		Channel, Drawer, Rh			Immediately	$ 30.01
15	316442301		Element, Surface, 8"/large, 2100w			Immediately	$ 44.39
16	318225606		Main Top, Black				$ 271.45
17	3051554		Rod, Support, Main Top Panel		Appelez-nous	-
18	318227710		Hinge, Maintop, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
27	807198301		Harness Assembly, Complete, Top Elements		Appelez-nous	-
28	5303017715		Medallion, 1 1/2"dia, Black, Surface Element				$ 64.46
39	316558201		Handle, Door, Stainless   (Replaces: 316558200)				$ 174.23
60	5303288572		Screw-handle Mtg		Appelez-nous	-
93	318366410		Support, Terminal Block, (4)				$ 13.47
13A	318018101		Channel, Drawer, Lh				$ 63.11
15A	318372211		Element, Surface, Small/6 Inch, 1500w   (Replaces: 316439801)			Immediately	$ 45.14
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5303325170		Nut, Keps, 8-32, (2)		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318531701		Spacer, (2)				$ 12.05
NIA	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	318591200		Washer, Handle, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
