SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

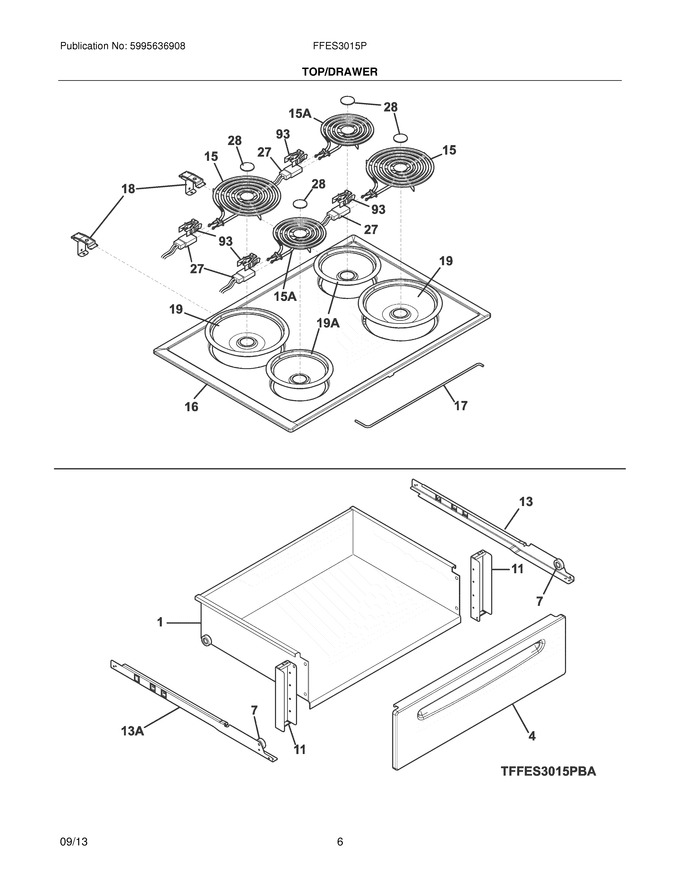

07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298906		Panel,drawer ,white ,front				$ 145.30
7	318332200		Roller,nylon		Appelez-nous	-
11	318298600		Bracket,drawer Support ,(2)				$ 62.69
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318225607		Main Top,white				$ 247.17
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318227710		Hinge,maintop ,(2)		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
93	318366410		Support,terminal Block ,(4)				$ 13.47
13A	318018101		Channel-drawer,lh				$ 63.11
F15	316442301		Element,surface ,8``/large ,2100w			Immediately	$ 44.39
F15A	318372211		Element-surface,small/6 Inch ,1500w   (Replaces: 316439801)			Immediately	$ 45.14
F19	316048413		Pan-surface Element,chrome ,large/8 Inch			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch			Immediately	$ 16.11
F27	807198301		Harness Assembly,complete ,top Elements		Appelez-nous	-
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	318531701		Spacer,(2)				$ 12.05
NI	5303325170		Nut,keps ,8-32 ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
