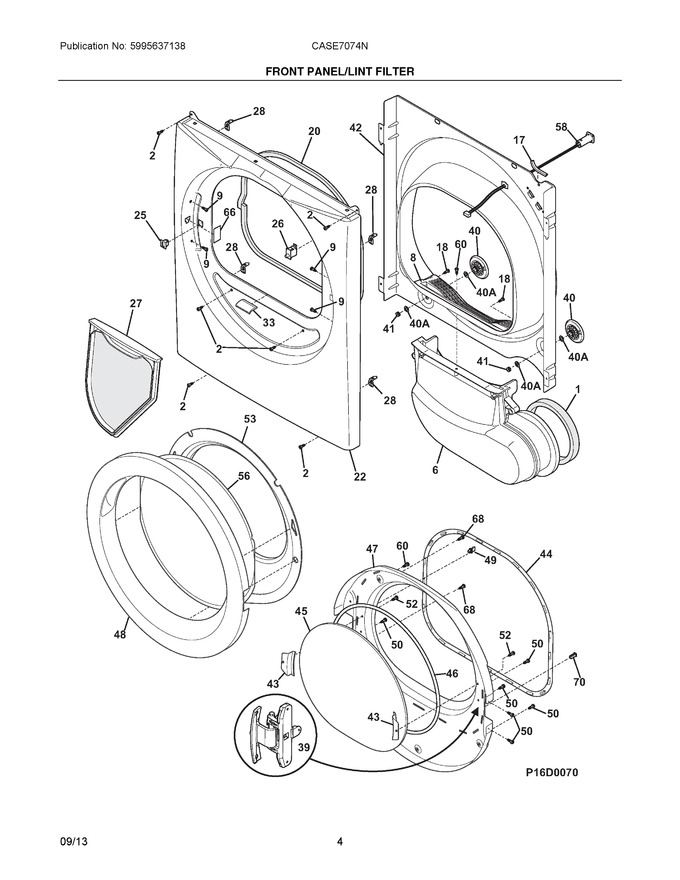

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137068200		Seal, Air Duct				$ 14.81
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
6	134710705		Duct, Air, Gray				$ 208.95
8	137554120		Cover, Lint Housing, Gray				$ 70.36
9	131633200		Plug, White				$ 15.90
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137116600		Gasket, Front Panel				$ 151.53
22	137554510		Panel, Front, White				$ 276.52
25	131658800		Door Catch, Upper			Immediately	$ 68.38
26	134813601		Switch, Door, Rectangle, White, With Drum Light			Immediately	$ 33.09
27	137560720		Filter, Lint, Complete				$ 58.12
28	137034500		Clip, Mounting, Cabinet Front				$ 43.24
33	137067110		Ramp, Gray, Door				$ 19.06
39	137105100		Hinge, Door, 39				$ 184.45
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	134696105		Bulkhead, Panel, Front				$ 227.17
43	134559300		Bracket, Door Glass				$ 11.34
44	137553402		Gasket, Door Seal				$ 87.12
45	137575900		Glass, Inner Door				$ 137.92
46	134580300		Gasket, Door Glass, Inner				$ 66.51
47	137554641		Panel, Inner Door, Gray				$ 162.49
48	5304507185		Door, Outer   (Replaces: 137578025)				$ 379.54
49	137555100		Strike, Door			Immediately	$ 12.29
50	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
52	131243700		Screw, Ph, 8-18ab X 0.375   (Replaces: 134529600)				$ 3.36
53	137578200		Ring, Adapter, Door Transition				$ 171.52
56	137578120		Lens, Outer Door				$ 102.06
58	131843500		Lamp Assy, Drum Light, W/mtg Bracket				$ 73.00
60	134430300		Screw, Indt Pan Head, 10-14 X 0.625, Quadrex			Immediately	$ 14.89
66	137577200		T-plug, Hinge Hole, 66				$ 5.79
68	134742000		Plug, Hinge Hole, White				$ 10.85
70	134417502		Plug, Rectangular				$ 19.74
40A	134716700		Washer, Flat				$ 2.12
NI	137292000		Harness, Wiring, Door Switch				$ 73.40
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
