01 - Cover Sheet

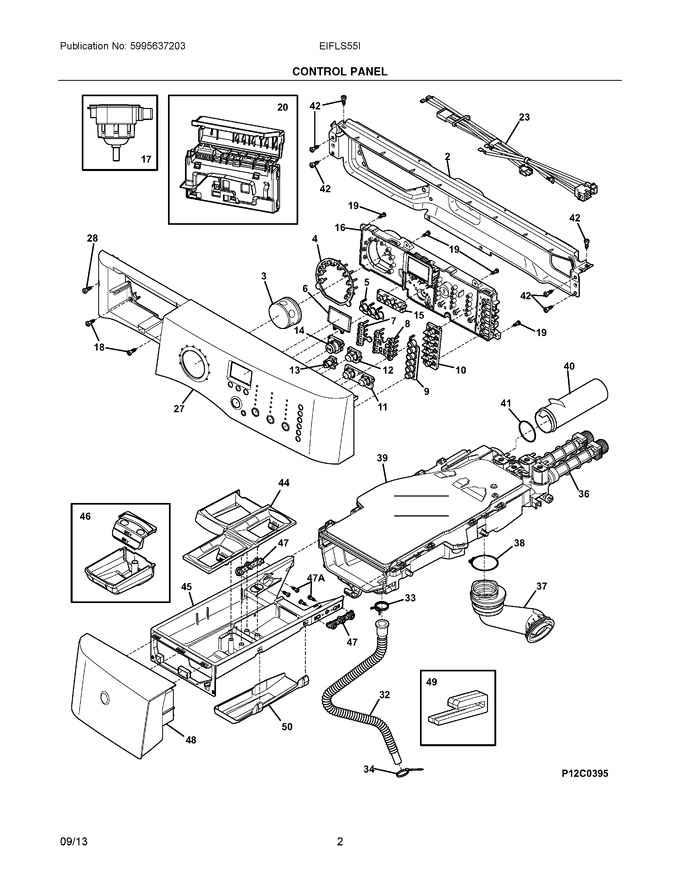

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134887400		Bracket, Control Panel, Mounting				$ 92.61
3	134766500		Knob, Retracting, Complete Asmy				$ 175.72
4	134907400		Pipe, Knob Light				$ 14.56
5	134872100		Ring, Display Button, Light		Appelez-nous	-
6	134767700		Lens, Lcd				$ 14.89
7	134895900		Pipe, Modifier Light, Group 1		Appelez-nous	-
8	134902200		Pipe, Modifier Light, Group 2&3		Appelez-nous	-
9	134894200		Ring, Option Button, Light		Appelez-nous	-
10	137032300		Button, Option		Appelez-nous	-
11	137032200		Button, Modifier, Button 2 & 3		Appelez-nous	-
12	137032100		Button, Modifier, Button 1		Appelez-nous	-
13	137032000		Button, Off		Appelez-nous	-
14	137015900		Button, Start/pause				$ 32.42
15	137031900		Button, Display				$ 58.12
16	134994910		Control Board, Printed Circuit, With Housing		Appelez-nous	-
17	134762010		Switch, Pressure				$ 42.64
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
20	134640611		Control Asmy, Main W/steam		Appelez-nous	-
23	134922900		Harness, Wiring, Main				$ 303.59
27	137537610		Panel, Control Console		Appelez-nous	-
28	131302901		Screw, 10-16 X 0.750				$ 4.96
32	134625500		Hose, Disp-to-bellows				$ 87.17
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
36	134637810		Valve Water, Dispenser, No Thermister			Immediately	$ 180.15
37	134625700		Hose, Disp-to-tub			Immediately	$ 72.72
38	134372400		Clamp, Tub Hose				$ 64.49
39	137108710		Housing, Dispenser, Valve, Cover				$ 200.18
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 13.74
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
44	134638310		Drawer Cover, With Graphics				$ 29.66
45	5304505336		Drawer, Dispenser   (Replaces: 134638200)			Immediately	$ 59.57
46	137143800		Cup, Dispenser, Liquid				$ 27.47
47	134657100		Guide, Dispenser Drawer				$ 34.18
48	137249510		Drawer Assembly, Dispenser, White		Appelez-nous	-
49	137105200		Guide, Drawer Console				$ 17.64
50	134638400		Conveyor, Dispenser, Lower				$ 22.64
47A	134654500		Screw, Pan Head, #6-20 X .28				$ 12.89
NI	137022810		Energy Guide		Appelez-nous	-
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIA	134178901		Screw, 8-18ab X 0.455				$ 14.89

    View Diagram in Separate Window       Print Part List
