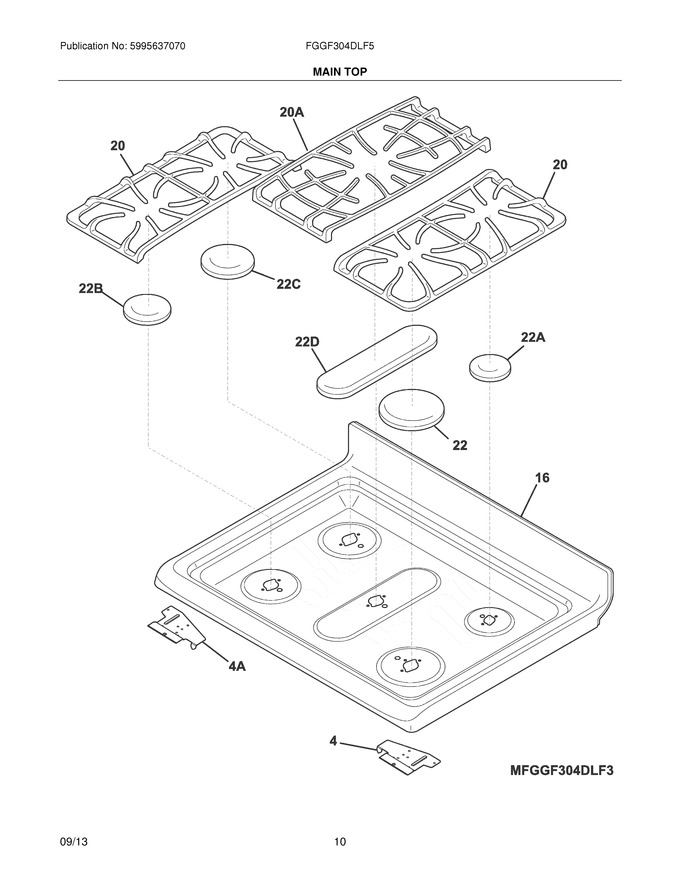

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316285002		Bracket-maintop,rh		Appelez-nous	-
16	318287574		Cook Top Assy,black		Appelez-nous	-
20	318941500		Grate,side ,black ,(2)		Appelez-nous	-
22	5304508468		Cap,17k Burner ,black   (Replaces: 316262104)				$ 49.45
20A	318941600		Grate,center ,black		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,matte ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	5304508443		Cap,14k Burner ,matte ,black   (Replaces: 316262004)			Immediately	$ 46.01
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 72.30
4A	316285003		Bracket-maintop,lh		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head ,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
