01 - Cover Sheet

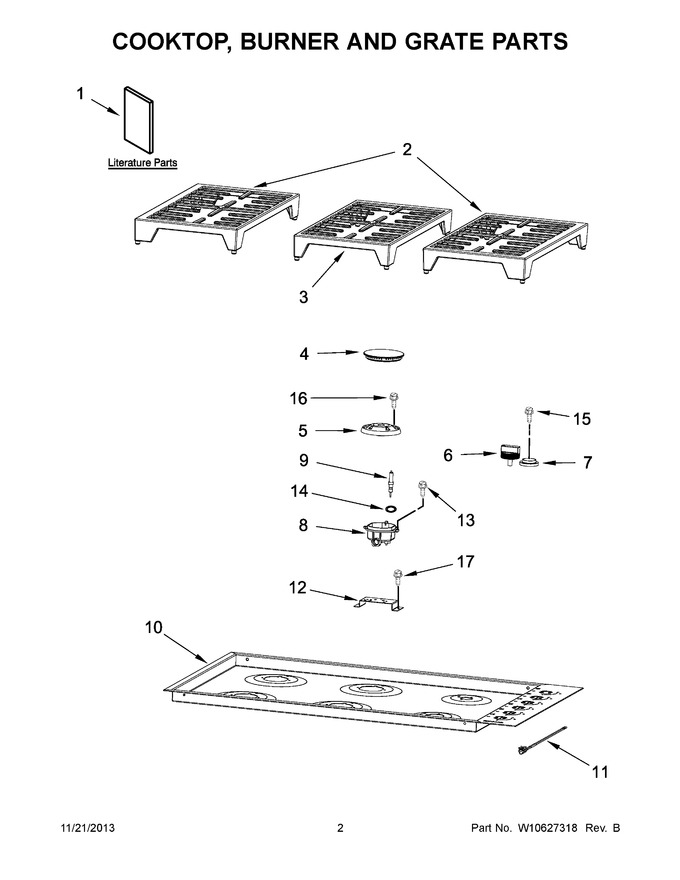

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10588276		Lp Conversion Instructions		Appelez-nous	-
1	W10588275		Instructions, Installation		Appelez-nous	-
1	W10588274		Guide, Use & Care		Appelez-nous	-
1	W10620795		Diagram, Wiring		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W11677639		Grate, Burner (side) (pro-line)   (Replaces: W10617811)				$ 381.45
2	WPW10617812		Grate, Burner (side) (stainless Model)   (Replaces: W10617812)				$ 399.20
3	WPW10617814		Grate, Burner (center) (stainless Model)   (Replaces: W10617814)				$ 313.19
3	WPW10617813		Grate, Burner (center) (pro-line)   (Replaces: W10617813)				$ 369.98
4	WPW10617815		Cap, Burner (black (large) (left Front, Left Rear, Center))   (Replaces: W10617815)			Immediately	$ 246.70
4	W10617816		Cap, Burner (black (medium) (right Front))				$ 69.27
4	W10617817		Cap, Burner (black (small) (right Rear))				$ 163.25
5	W11197492		Base, Burner (large (left Front, Left Rear, Center))   (Replaces: W10617818)			Immediately	$ 121.97
5	W10617819		Base, Burner (medium (right Front))				$ 79.95
5	W10617820		Base, Burner (small (right Rear))				$ 73.52
6	W10620811		Knob (pro-line)				$ 86.56
6	WPW10620810		Knob (stainless)   (Replaces: W10620810)				$ 156.42
7	W10618500		Bezel, Knob (stainless)			Immediately	$ 140.56
8	WPW10571491		Holder Orifice (132mm) (right Front)   (Replaces: W10571491)				$ 63.45
8	W10618474		Holder Orifice (193mm) (left Front)				$ 110.81
8	WPW10571493		Holder Orifice (170mm) (left Rear, Center Rear, Center Front)   (Replaces: W10571493)				$ 72.47
8	W10618475		Holder Orifice (110mm) (right Rear)				$ 69.47
9	W10617809		Electrode (695mm) (left Front, Left Rear)				$ 119.31
9	W10617808		Electrode (395mm) (center Front, Center Rear)				$ 82.31
9	W10623868		Electrode (250mm) (right Rear)				$ 67.64
9	W10617810		Electrode (250mm) (right Front)			Immediately	$ 69.97
10	WPW10618505		Cooktop, Main   (Replaces: W10618505)				$ 1,990.15
11	W11807280		Assembly, Indicatorlight (led)   (Replaces: W10617592)				$ 206.32
12	W10618476		Bracket, Orifice Holder		Appelez-nous	-
13	W10626015		Screw, Injector Holder				$ 17.14
14	W10571930		Clip, Electrode			Immediately	$ 21.71
15	W10637348		Screw			Immediately	$ 26.28
16	W11676624		Screw, Burner Base ( Large And Medium Burners )   (Replaces: W10626016)			Immediately	$ 13.17
16	W10626017		Screw, Burner Base ( Small Burner )				$ 16.78
17	W10626012		Screw , 8-32 X 1/4`` Pan Head		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
